Tank
Applies for the following Item Numbers B6001
| Pos. | Description | Item no. |
| 1 | Pump Manifold assembly | B6003S |
| 2 | Pressure pipe | AE04018 |
| 3 | Return pipe | AE04017 |
| 4 | Electrical Box | 1010038 |
| 5 | Pipe clamp | 1010088 |
| 6 | Piston Accu. 10L P0=155 bar - CW - Pos. 71 | 1010080 |
| 6.1 | Gas valve | 23325 |
| 6.2 | Seal kit | 20034580 |
| 7 | Ground cable | 1010044 |
| 8 | Pipe clamp | 1006322 |
| 9 | ORFS Male stud connector | 360668 |
| 10 | ORFS Swivel nut elbow | 360705 |
| 11 | Accumulator pipe | AE04025 |
| 12 | Hose clamp | 1002686 |
| 13 | Ground cable | 1010045 |
| 14 | Return pipe | AE04016 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

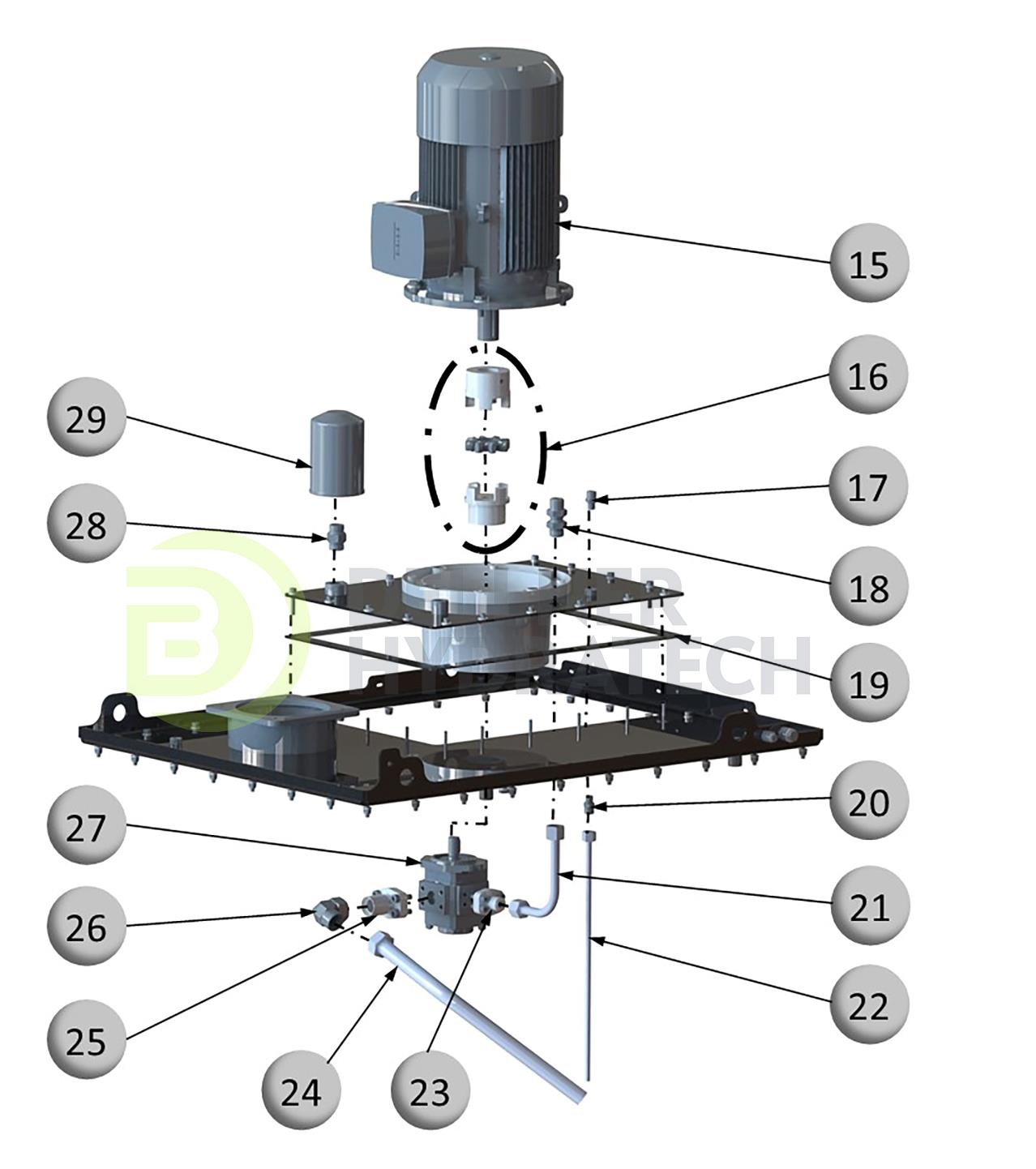

Tank
Applies for the following Item Numbers B6001
| Pos. | Description | Item no. |
| 15 | El Motor - Pos. 4 | 1005201 |
| 16 | Motor coupling | 1007018 |
| 17 | Coupling spider | 1007595 |
| 18 | Pump coupling | 1010083 |
| 19 | ORFS Male stud connector | 360662 |
| 20 | ORFS Bulkhead | 1002893 |
| 21 | Seal part | AE04003 |
| 22 | ORFS Male stud connector | 360662 |
| 23 | Pressure pipe | AE04015 |
| 24 | Return pipe | AE04012 |
| 25 | Flange | 1008740 |
| 26 | Suction pipe | AE04014 |
| 27 | Flange | 1010081 |
| 28 | Swivel nut elbow | 8072L28 00 |
| 29 | Internal gear pump - Pos. 1 | 1010007 |
| 30 | BSP Union straight | 458200 |
| 31 | Air breather - Pos.20 | 722120 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B6001
| Pos. | Description | Item no. |
| 32 | Return filter - Pos. 30 | 1007925 |
| 32.1 | Return filter element | 1002207 |
| 32.2 | Seal kit for Return filter | 1014375 |
| 33 | Temperature sensor - Pos. 24 | 1010022 |
| 34 | Handle for hand pump | 1002202 |
| 35 | Tank seal | AE04004 |
| 36 | ORFS Male stud elbow | 358623 |
| 37 | ORFS Male stud swivel | 360686 |
| 38 | Ball valve - Pos. 99 | 9596333 |
| 39 | Pressure transmitter - Pos. 21 | 1010010 |
| 40 | Return pipe | AE04012 |
| 41 | Hose clamp | 1010053 |
| 42 | ORFS Male stud connector | 360662 |
| 43 | Seal part | AE04005 |
| 44 | O - ring | 1000690 |
| 45 | Filter Manifold assembly | B6004S |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
