Manifold assembly
Manifold assembly
Applies for the following Item Numbers B5263
| Pos. | Description | Item no. |
| 1 | ORFS Male stud connector | 360662 |
| 2 | Test point male stud - Pos. M1 | 358709 |
| 3 | Sequence valve - Pos. 1V11 | 1010188 |
| 4 | ORFS Male stud connector | 360670 |
| 5 | ORFS Male stud connector | 360662 |
| 6 | ORFS Swivel gauge connector | 1005892 |
| 7 | Cartridge Check valve - Pos. 1V3 | 1005866 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

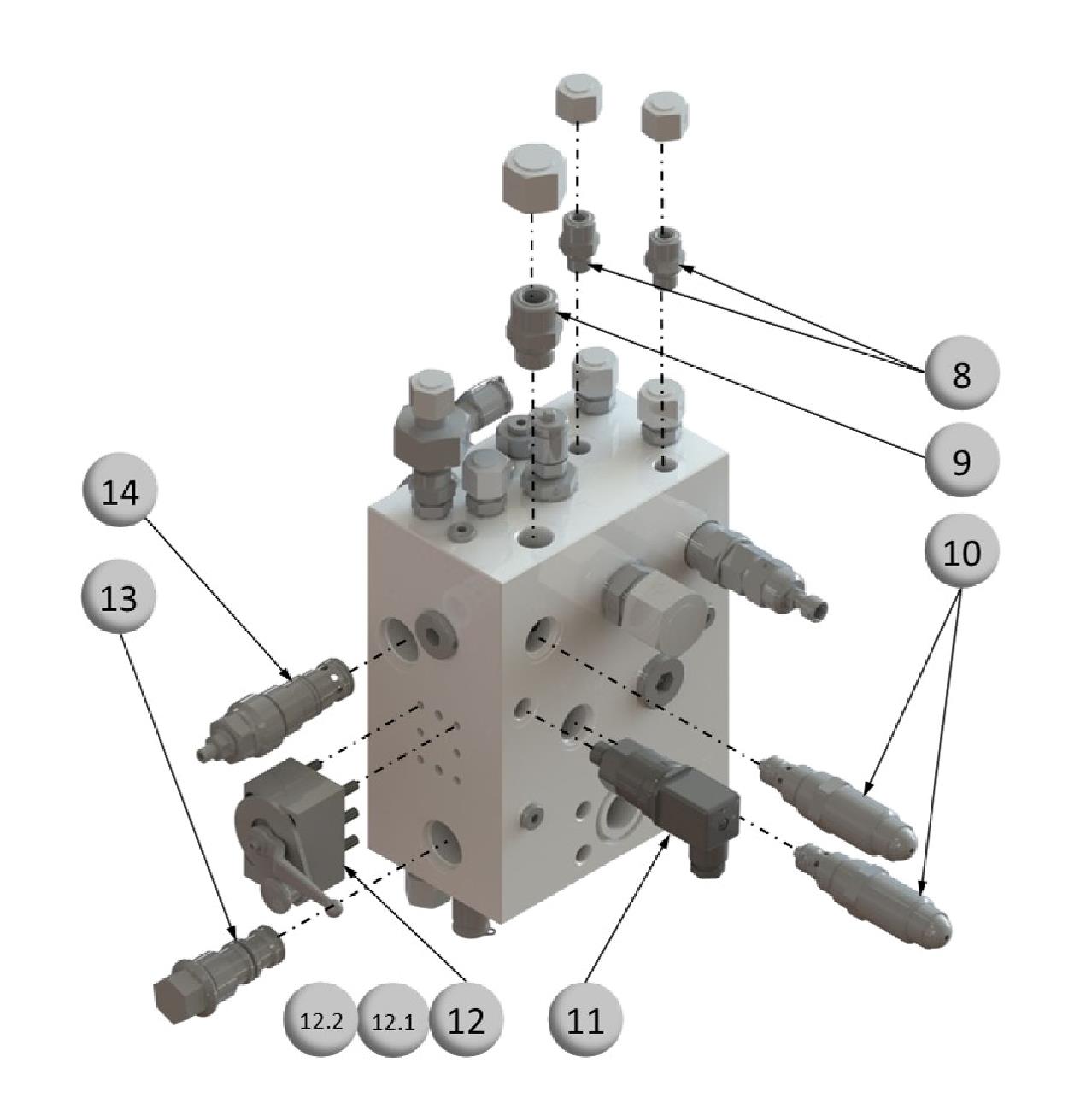

Manifold assembly
Applies for the following Item Numbers B5263
| Pos. | Description | Item no. |
| 8 | ORFS Male stud connector | 360662 |
| 9 | ORFS Male stud connector | 360667 |
| 10 | Relief valve - Pos. 1V7, 1V8 | 1007108 |
| 11 | Pressure transmitter - Pos. 1S1 | 1006862 |
| 12 | Ball valve - Pos. 1V6 | 329290 |
| 12.1 | Locking plate | AE02546 |
| 12.2 | Detent plunger | 453900 |
| 13 | Cartridge Check valve - Pos. 1V9 | 105024 |
| 14 | Relief valve - Pos. 1V5 | 1008054 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Manifold assembly
Applies for the following Item Numbers B5263
| Pos. | Description | Item no. |
| 15 | Pressure transmitter - Pos. 1S2 | 1006862 |
| 16 | ORFS Male stud connector | 360662 |
| 17 | Test point male stud | 358702 |
| 18 | ORFS Male stud connector | 360670 |
| 19 | Cartridge Check valve - Pos. 1V4 | 1008012 |
| 20 | Test point male stud - Pos. M3, M2 | 358701 |
| 21 | Flow control valve - Pos. 1V2 | 1008000 |
| 22 | Cartridge Check valve - Pos. 1V1 | 1005866 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
