Actuator assembly
Actuator assembly TMD A+D
Applies for the following Item Numbers B5257
| Pos. | Description | Item no. |
| 1 | Actuator - Pos. 1A1 | 20011470 |
| 1.1 | Seal kit | 20011073 |
| 2 | O-Ring | 313701 |
| 3 | Manifold assembly | B5263SP |
| 4 | O-Ring | 313701 |
| 5 | Piston Accu. 5L P0=100 bar - NW - Pos. 1Z3 | 20011478 |
| 5.1 | Gas filling valve | 23325 |
| 5.2 | Seal kit | 20008291 |
| 6 | Actuator Pipe | AE02799 |
| 7 | Actuator Pipe | AE02749 |
| 8 | ORFS Male stud connector | 360670 |
| 9 | Bidirectional check valve - Pos. 1V12 | 1008629 |
| 10 | ORFS Swivel male stud | 360689 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

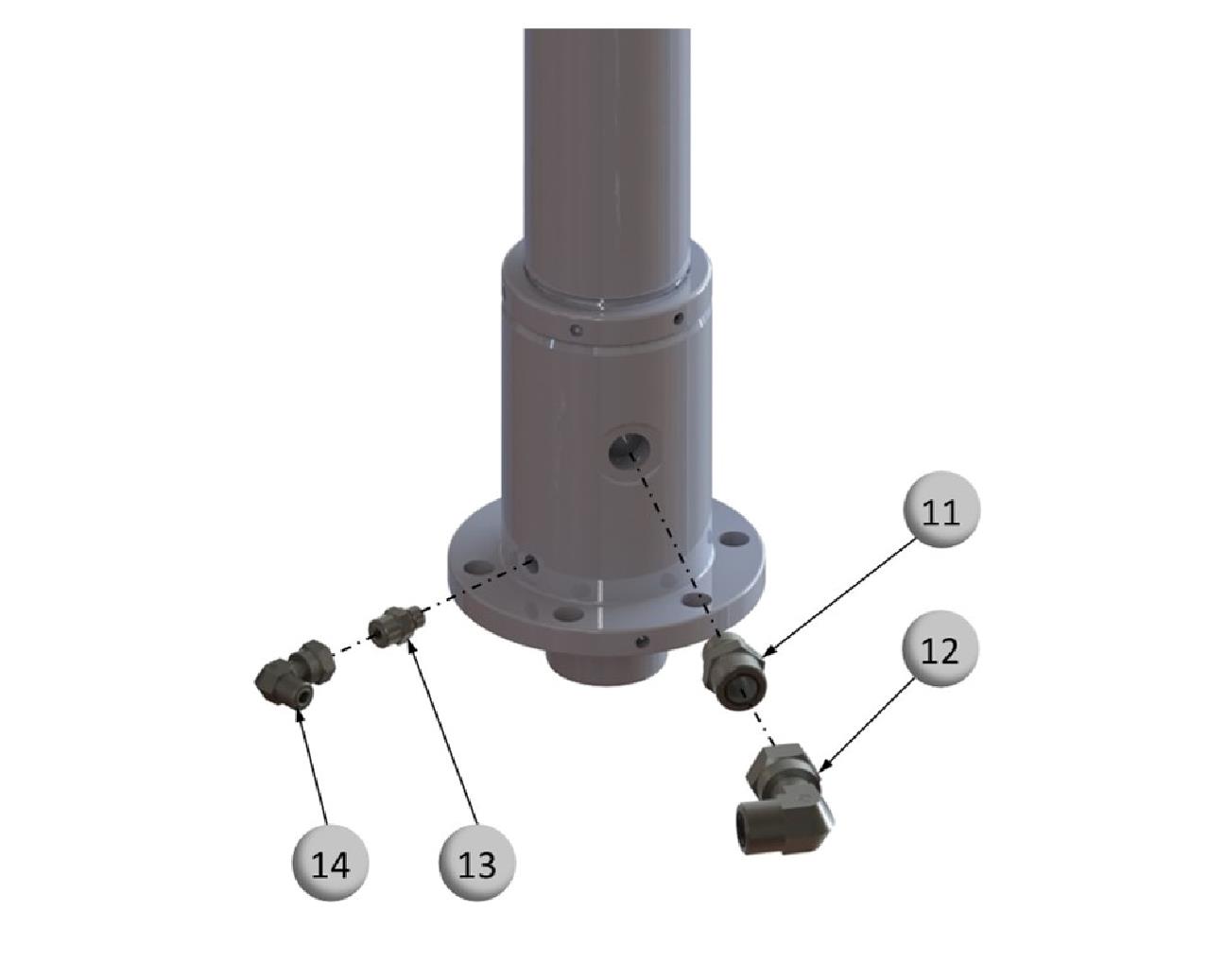

Actuator assembly TMD A+D
Applies for the following Item Numbers B5257
| Pos. | Description | Item no. |
| 11 | ORFS Male stud connector | 360670 |
| 12 | ORFS Swivel nut elbow | 360755 |
| 13 | ORFS Male stud connector | 360662 |
| 14 | ORFS Swivel nut elbow | 360702 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Actuator assembly TMD B
Applies for the following Item Numbers B5322
| Pos. | Description | Item no. |
| 1 | Actuator - Pos. 1A1 | 20012544 |
| 1.1 | Seal kit | 20011073 |
| 2 | O-Ring | 313701 |
| 3 | Manifold assembly | B5263SP |
| 4 | O-Ring | 313701 |
| 5 | Piston Accu. 5L P0=100 bar - NW - Pos. 1Z3 | 20011478 |
| 5.1 | Gas filling valve | 23325 |
| 5.2 | Seal kit | 20008291 |
| 6 | Actuator Pipe | AE02801 |
| 7 | Actuator Pipe | AE02802 |
| 8 | ORFS Male stud connector | 360670 |
| 9 | Bidirectional check valve - Pos. 1V12 | 1008629 |
| 10 | ORFS Swivel male stud | 360689 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

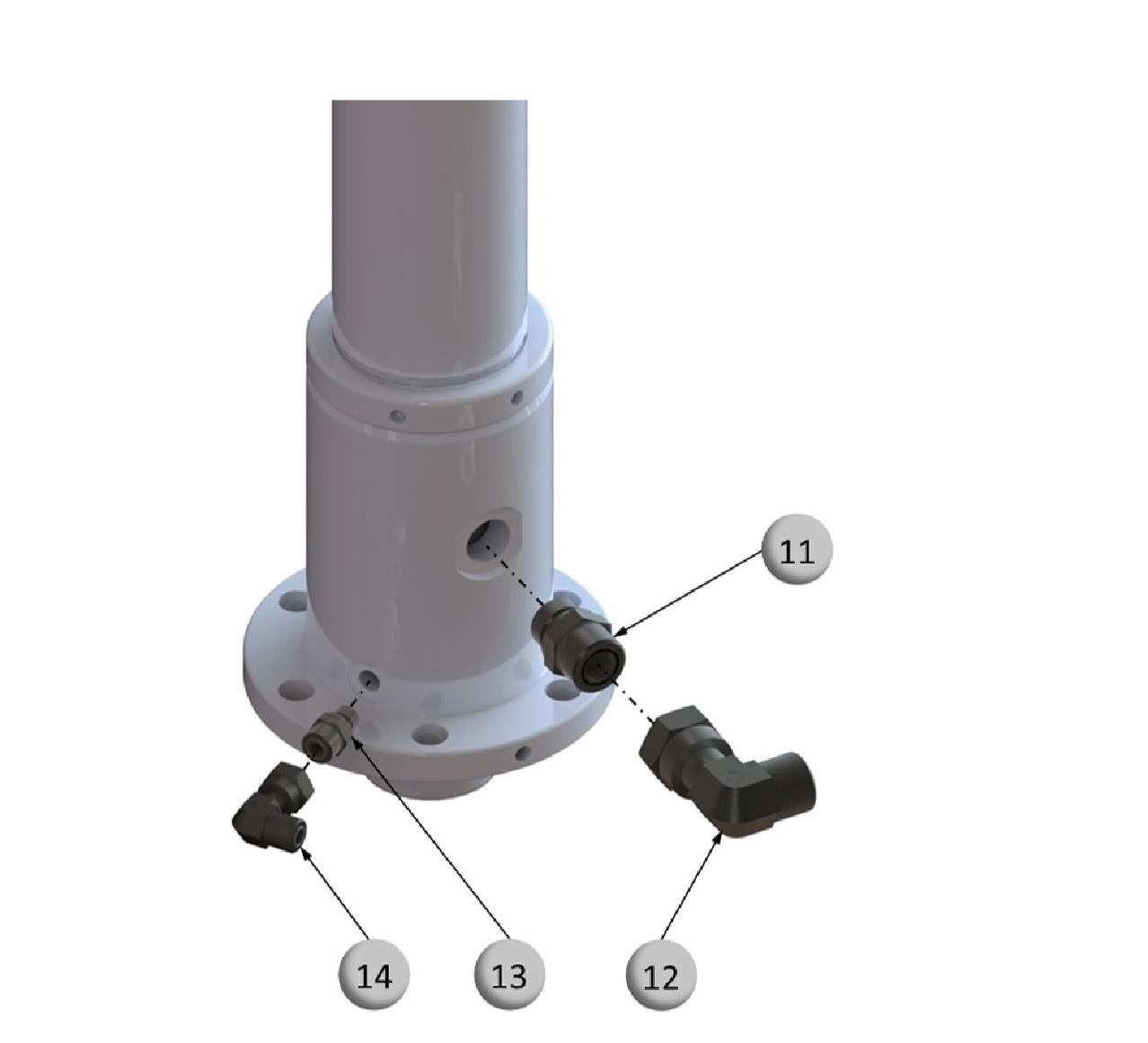

Actuator assembly TMD B
Applies for the following Item Numbers B5322
| Pos. | Description | Item no. |
| 11 | ORFS Male stud connector | 360670 |
| 12 | ORFS Swivel nut elbow | 360755 |
| 13 | ORFS Male stud connector | 360662 |
| 14 | ORFS Swivel nut elbow | 360702 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Actuator assembly TMD C
Applies for the following Item Numbers B5323
| Pos. | Description | Item no. |
| 1 | Piston Accu. 5L P0=100 bar - NW - Pos. 1Z3 | 20011478 |
| 1.1 | Gas filling valve | 23325 |
| 1.2 | Seal kit | 20008291 |
| 2 | O-Ring | 313701 |
| 3 | Manifold assembly | B5263SP |
| 4 | O-Ring | 313701 |
| 5 | Actuator - Pos. 1A1 | 20012545 |
| 5.1 | Seal kit | 20011073 |
| 6 | Actuator Pipe | AE02803 |
| 7 | Actuator Pipe | AE02804 |
| 8 | ORFS Male stud connector | 360670 |
| 9 | Bidirectional check valve - Pos. 1V12 | 1008629 |
| 10 | ORFS Swivel male stud | 360689 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

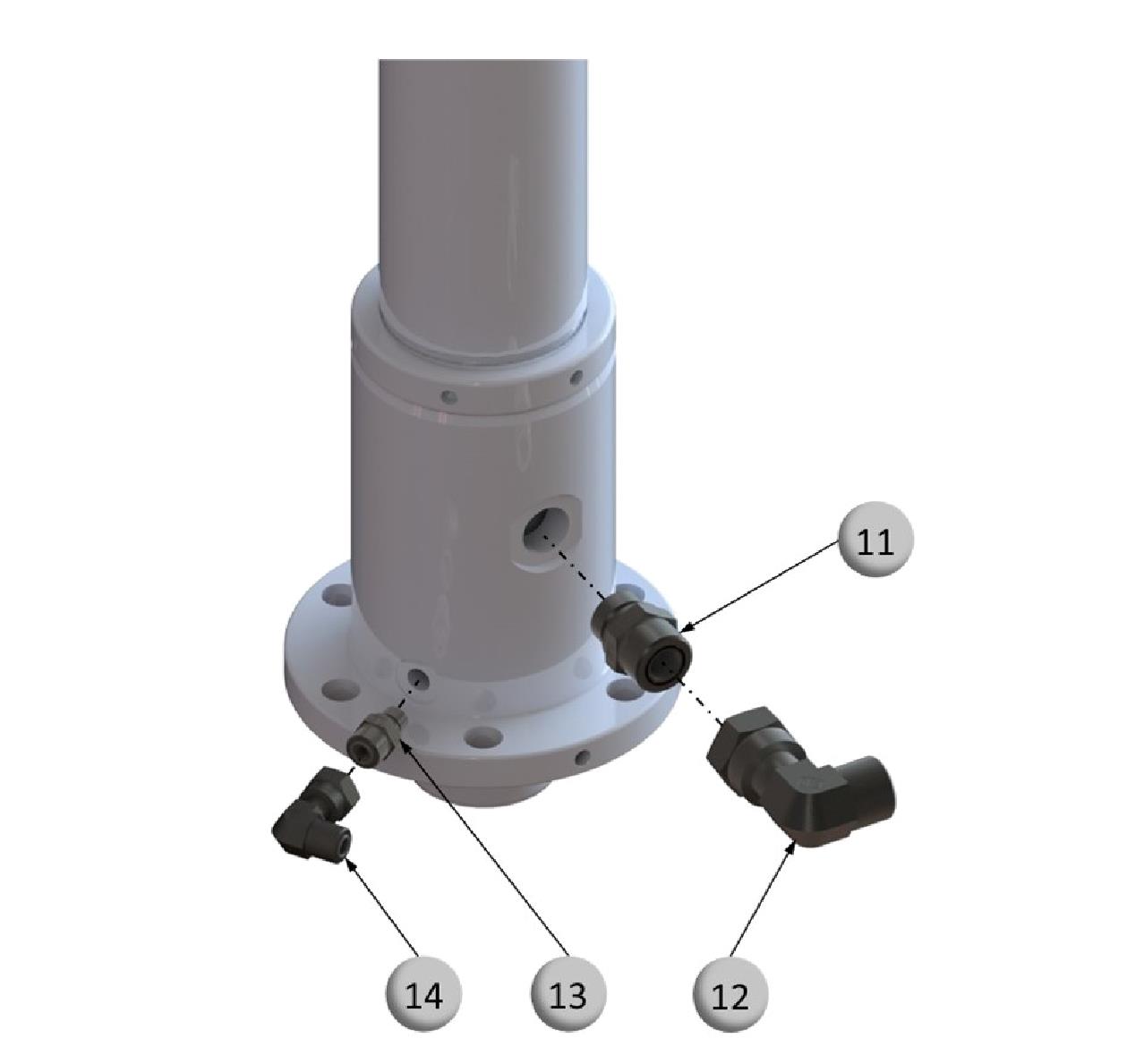

Actuator assembly TMD C
Applies for the following Item Numbers B5323
| Pos. | Description | Item no. |
| 11 | ORFS Male stud connector | 360670 |
| 12 | ORFS Swivel nut elbow | 360755 |
| 13 | ORFS Male stud connector | 360662 |
| 14 | ORFS Swivel nut elbow | 360702 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
