Pump manifold
Pump manifold
Applies for the following Item Numbers B5333
| Pos. | Description | Item no. |
| 1 | Ball valve - Pos. 0V7 | 1009086 |
| 1.1 | AE Bracket | AE02726 |
| 1.2 | Locking plate | AE02731 |
| 1.3 | Spacer | 1007362 |
| 2 | Test coupling - Pos. M5, M6 | 358701 |
| 3 | Shuttle valve cartridge - Pos. 0V9 | 1008070 |
| 4 | Cartridge check valve - Pos. 0V16 | 1005866 |
| 5 | ORFS Male stud connector | 360662 |
| 6 | Spacer | 1008139 |
| 7 | Ball valve - Pos. 0V4 | 329290 |
| 7.1 | Locking plate | AE02513 |
| 7.2 | Detent plunger | 453900 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

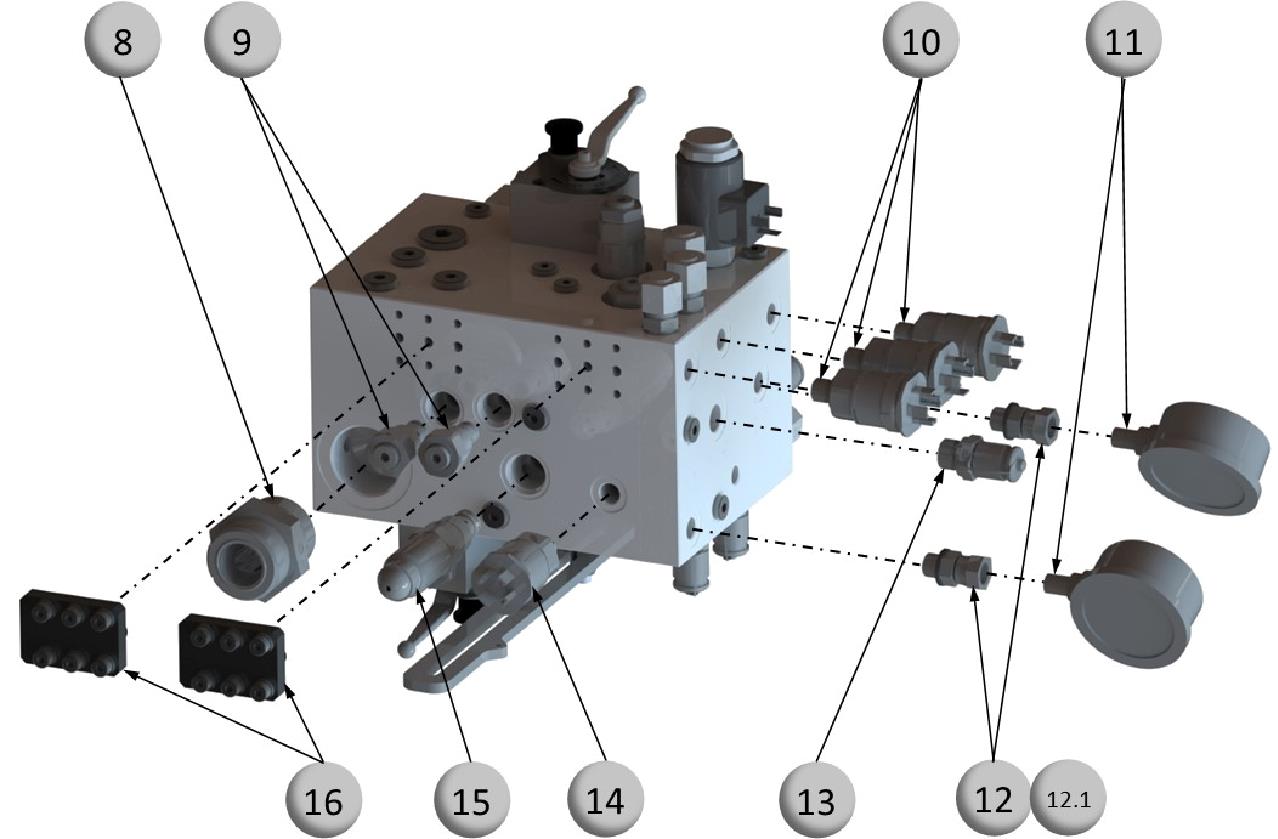

Pump manifold
Applies for the following Item Numbers B5333
| Pos. | Description | Item no. |
| 8 | ORFS Male stud connector | 360657 |
| 9 | Cartridge check valve - Pos. 0V3, 0V12 | 1005866 |
| 10 | Pressure transmitter - Pos. 0S4, 0S5, 0S7 | 634210 |
| 11 | Pressure gauge - Pos. 0Z8, 0Z4 | 184600 |
| 12 | Swivel gauge connector - Pos. 0V15, 0V2 | 211802 |
| 12.1 | Bonded seal | 478800 |
| 13 | Test coupling - Pos. M3 | 358703 |
| 14 | Pressure transmitter - Pos. 0S6 | 634210 |
| 15 | Relief valve cartridge - 0V5 | 1006722 |
| 16 | Cover plate | AE02848 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump manifold
Applies for the following Item Numbers B5333
/B5333-3.3.jpg&Format=jpg&Width=1278&Quality=75)
| Pos. | Description | Item no. |
| 17 | Solenoid Cartridge valve - Pos. 0V8 | 1013008 |
| 18 | Ball valve - Pos. 0V13 | 1009086 |
| 18.1 | Locking plate | AE02735 |
| 18.2 | Detent plunger | 453900 |
| 18.3 | Lever for ball valve | 1006285 |
| 19 | Relief valve cartridge - 0V11 | 1005776 |
| 20 | ORFS Male stud connector | 360670 |
| 21 | ORFS Male stud connector | 360662 |
| 22 | Solenoid Cartridge valve - Pos. 0V1 | 1011937 |
| 23 | Test coupling - Pos. M4 | 358701 |
| 24 | Shuttle valve cartridge - Pos. 0V10 | 1008070 |
| 25 | Test coupling - Pos. M1, M2 | 358701 |
| 26 | ORFS Male stud connector | 360662 |
| 27 | ORFS Male stud connector | 360662 |
| 28 | Cartridge check valve - Pos. 0V17 | 1005866 |
