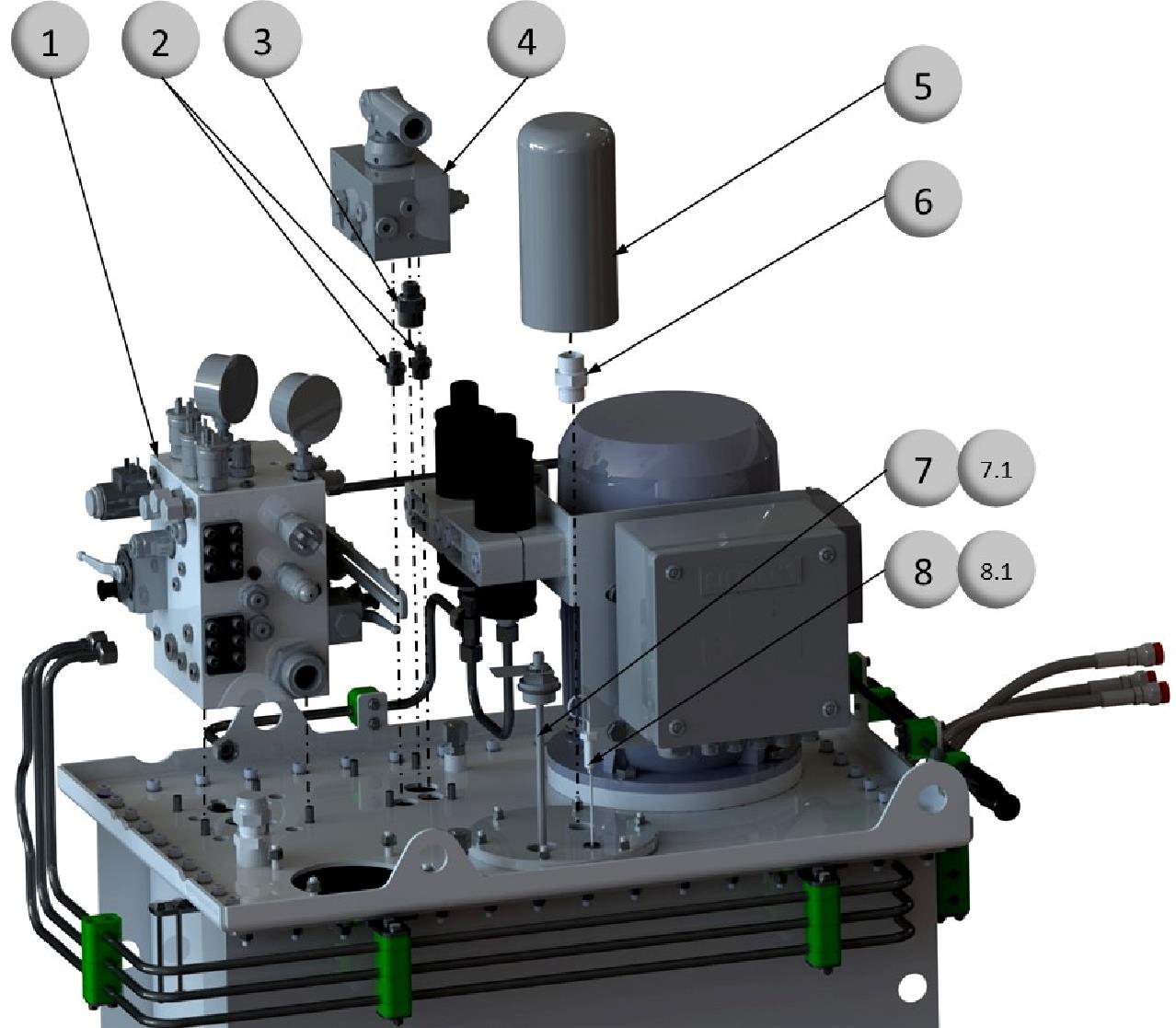

Tank
Applies for the following Item Numbers B5318
Pos. | Description | Item no. |
1 | Pump manifold assembly | B5333S |
2 | ORFS Male stud connector | 360662 |
3 | ORFS Male stud connector | 360668 |
4 | Hand pump | 1007079 |
5 | Air breather filter | 722105 |
6 | BSP Union straight | 1005362 |
7 | Level Temperature switch | 1007364 |
7.1 | Bonded seal | 479500 |
8 | Dipstick | 1008059 |
8.1 | Bonded seal | 478700 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

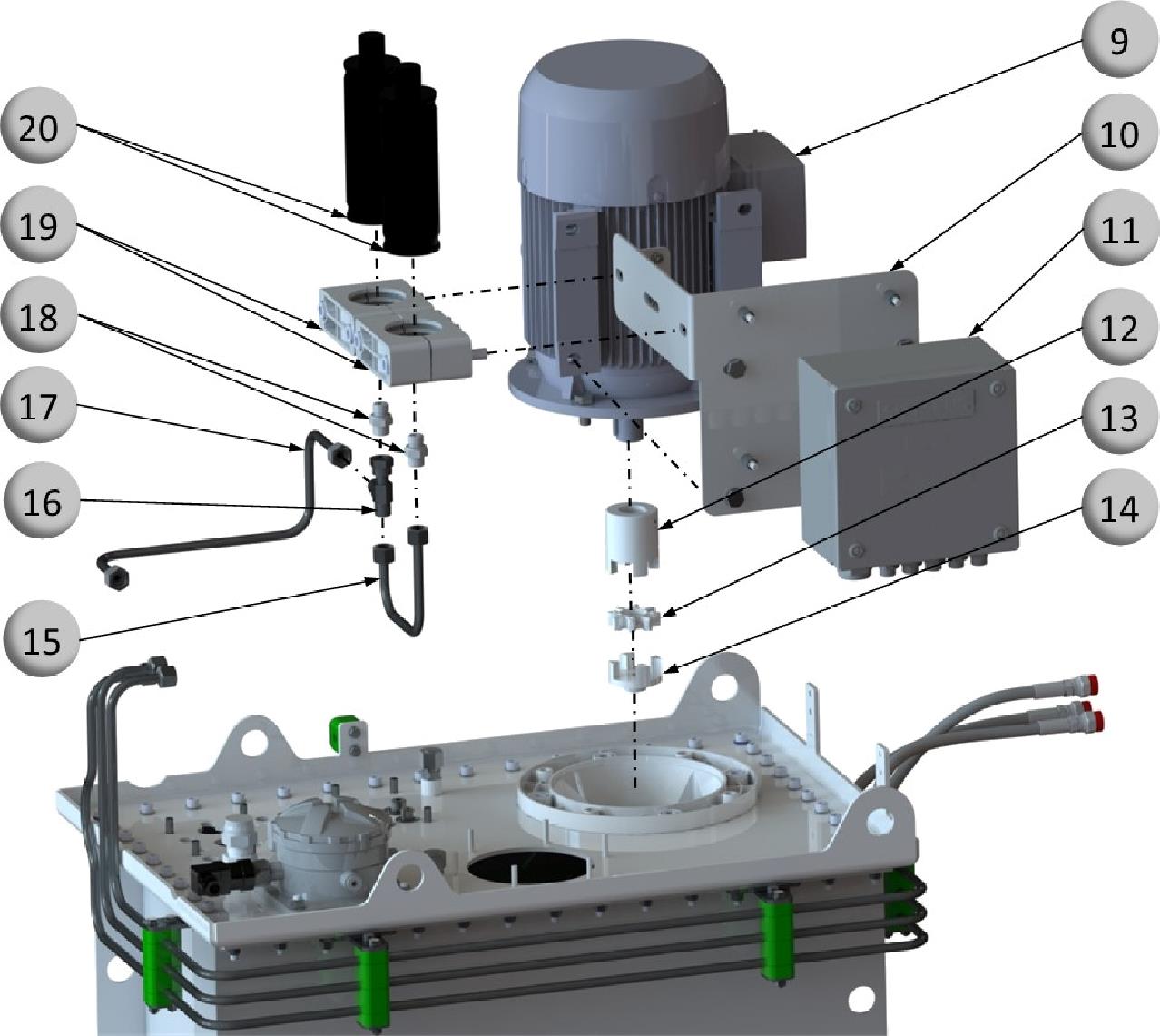

Tank
Applies for the following Item Numbers B5318
Pos. | Description | Item no. |
9 | EI motor | 1008032 |
10 | Bracket for terminal box | AE02730 |
11 | Electrical box | 1010086 |
12 | Coupling motor | 1008033 |
13 | Rubber spider | 1008034 |
14 | Pump coupling | 1008035 |
15 | Accumulator Pipe | AE02809 |
16 | ORFS Swivel nut run tee | 358350 |
17 | Pressure Pipe | AE02810 |
18 | ORFS Male stud connector | 360663 |
19 | Pipe clamp | 298555 |
20 | Piston Accu. 0.15L P0=30 bar - CW | 1008218 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

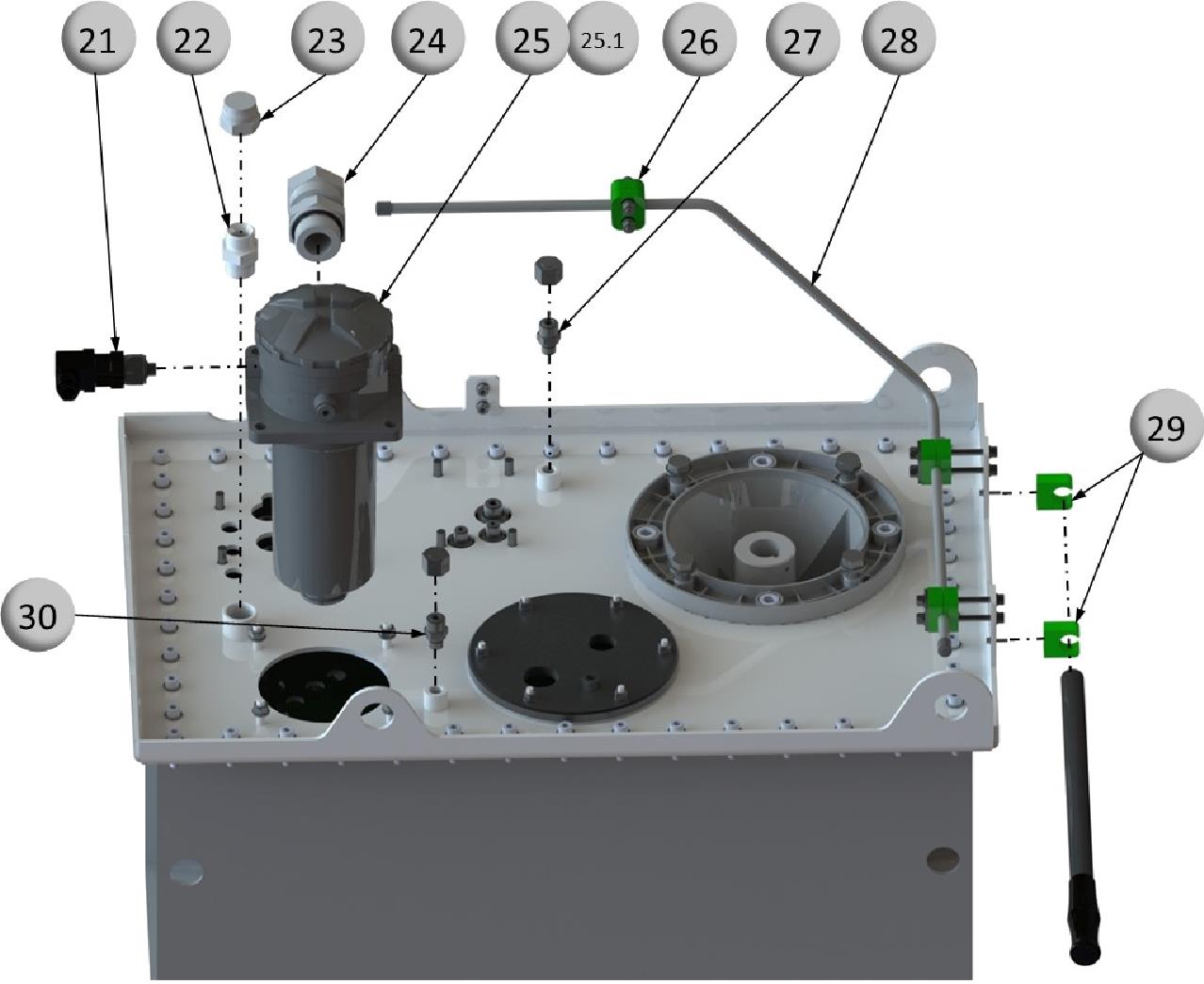

Tank
Applies for the following Item Numbers B5318
Pos. | Description | Item no. |
21 | Filter indicator | 1002160 |
22 | BSP Union straight | 1005362 |
23 | BSP Blanking plug female | 1008773 |
24 | ORFS Male stud swivel | 360691 |
25 | Return filter | 1008039 |
25.1 | Filter element | 1008068 |
26 | Pipe clamp | 297200 |
27 | ORFS Male stud connector | 360662 |
28 | Cable guide | AE02816 |
29 | Single clamp | 1012317 |
30 | ORFS Male stud connector | 360662 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

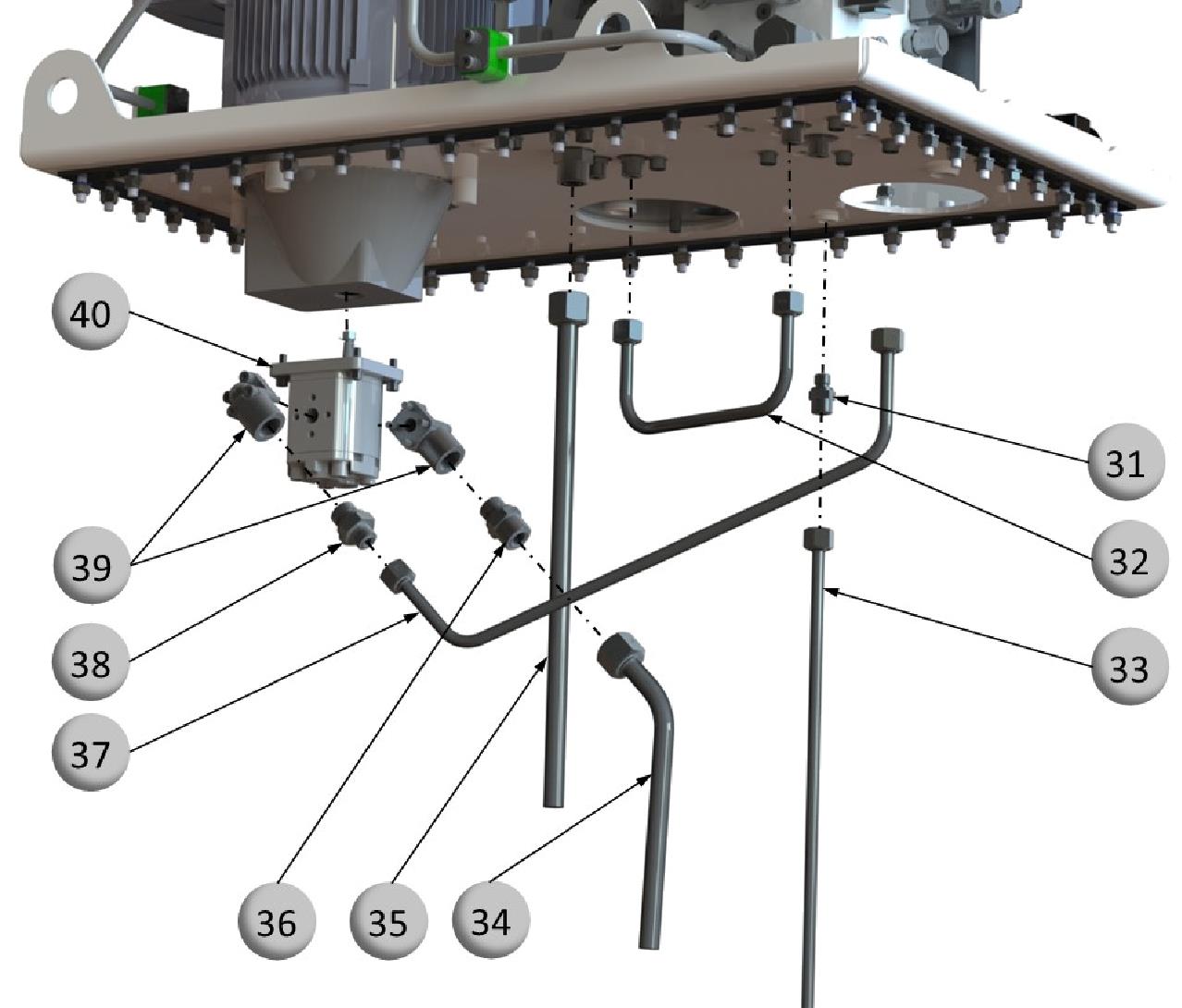

Tank
Applies for the following Item Numbers B5318
Pos. | Description | Item no. |
31 | ORFS Male stud connector | 360662 |
32 | Pressure Pipe | AE02813 |
33 | Pressure Pipe | AE02845 |
34 | Suction pipe | AE02812 |
35 | Suction pipe | AE02815 |
36 | ORFS Male stud connector | 360667 |
37 | Pressure Pipe | AE02811 |
38 | ORFS Male stud connector | 360665 |
39 | Flange | 179510 |
40 | External gear pump | 176600 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B5318
Pos. | Description | Item no. |
41 | Pipe clamp | 297200 |
42 | Tank seal | AE02719 |
43 | Pressure hose | AE02796 |
44 | Pressure hose | AE02795 |
45 | Pressure hose | AE02797 |
46 | ORFS Adaptor | 1003172 |
47 | AE Pipe | AE02805 |
48 | AE Pipe | AE02806 |
49 | AE Pipe | AE02807 |
50 | Pipe clamp | 297200 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
