Pump manifold
Pump manifold
Applies for the following Item Numbers B5262
| Pos. | Description | Item no. |
| 1 | Ball valve - Pos. 0V7 | 1009086 |
| 1.1 | AE Bracket | AE02726 |
| 1.2 | Locking plate | AE02731 |
| 1.3 | Spacer | 1007362 |
| 2 | Test coupling - Pos. M5, M6 | 358701 |
| 3 | Shuttle valve cartridge - Pos. 0V9 | 1008070 |
| 4 | ORFS Male stud connector | 360662 |
| 5 | Solenoid Cartridge valve - Pos. 0V1 | 1011937 |
| 6 | ORFS Male stud connector | 360662 |
| 7 | ORFS swivel gauge connector | 1005892 |
| 8 | ORFS Male stud connector | 360662 |
| 9 | Spacer | 1008139 |
| 10 | Ball valve - Pos. 0V4 | 329290 |
| 10.1 | Locking plate | AE02513 |
| 10.2 | Detent plunger | 453900 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

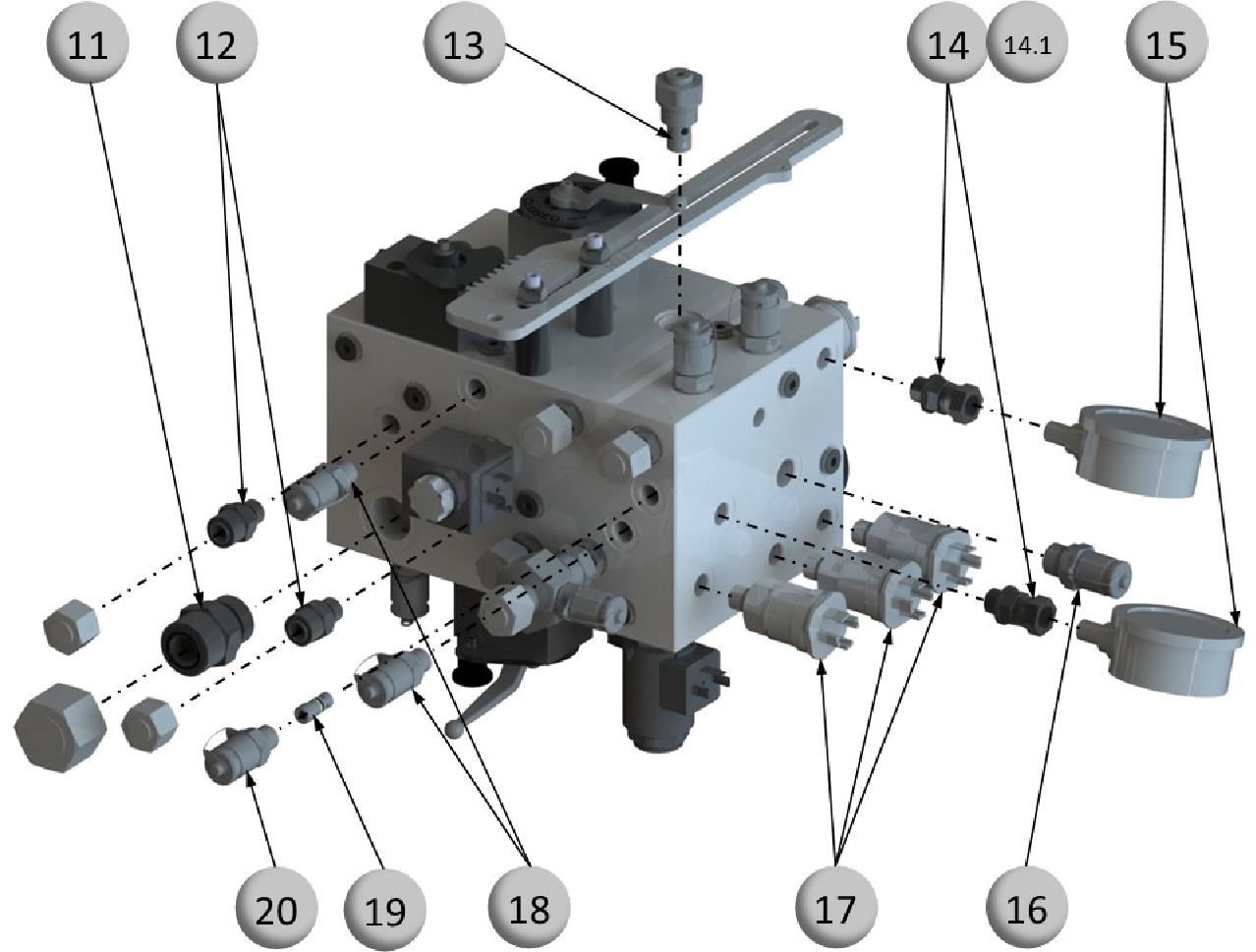

Pump manifold
