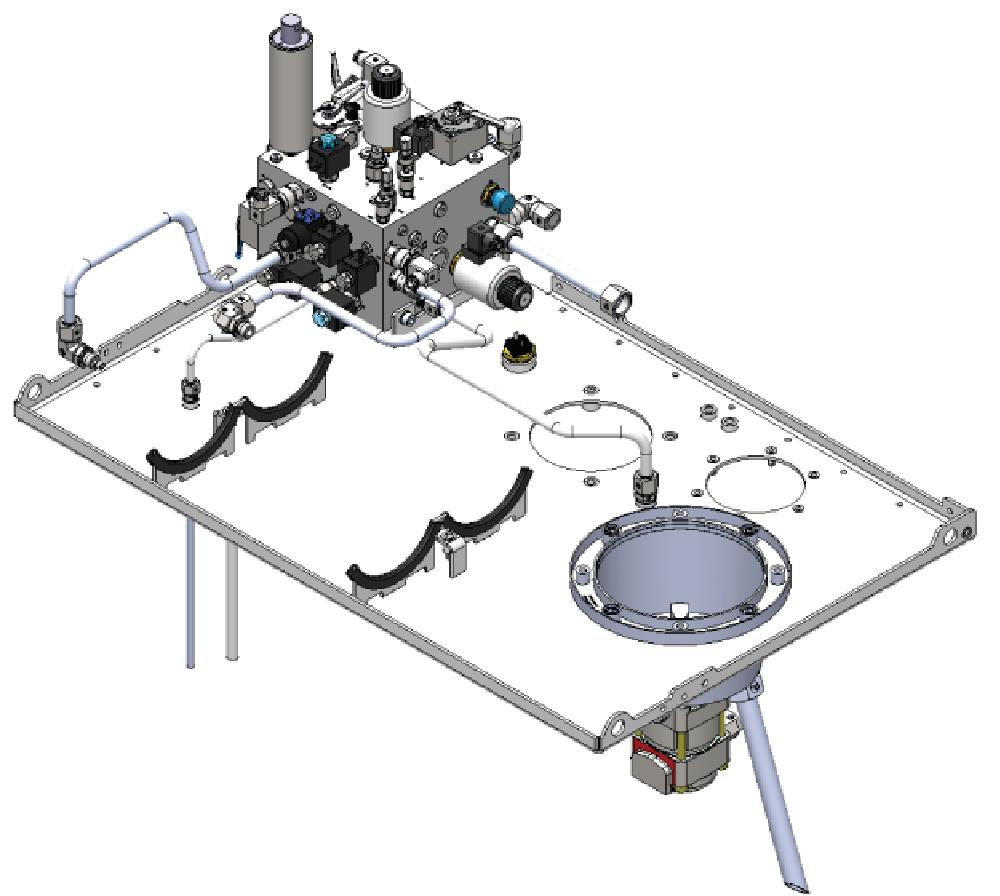

Pump Manifold
Pump Manifold
Applies for the following Item Numbers B5118
| Pos. | Description | Item no. |
| 1 | BSP Blanking Plug | 8022 10 00 |
| 2 | Solenoid Valve - Pos. 25 | 1005791 |
| 3 | ORFS Male stud connector | 360668 |
| 4 | AE Manifold | AE02567 |
| 5 | BSP Blanking Plug | 8022 10 00 |
| 6 | BSP Blanking Plug | 8022 17 00 |
| 6.1 | Pressure Filter Insert - 214 | 1002165 |
| 6.2 | Orifice Sleeve - Pos. 213 | 153006 |
| 7 | BSP Blanking Plug | 8022 13 00 |
| 7.1 | Orifice Sleeve - Pos. 221 | 153030 |
| 8 | ORFS Male stud connector | 360662 |
| 9 | BSP Blanking Plug | 8022 13 00 |
| 10 | Solenoid Valve - Pos. 216 | 1012979 |
| 11 | Solenoid Valve - Pos. 211 | 1007589 |
| 11.1 | Coil | 1002650 |
| 12 | Solenoid Valve - Pos. 253 | 1005298 |
| 12.1 | Coil | 1002650 |
| 13 | Pressure Transmitter - Pos. 228 | 1006862 |
| 14 | Relief Valve - Pos. 84 and 245 | 1005776 |
| 15 | Check Valve - Pos. 16 | 1000238 |
| 16 | ORFS Cap | 358656 |
| 16.1 | ORFS Male stud connector | 360662 |
| 17 | BSP Blanking Plug | 8022 10 00 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump Manifold
Applies for the following Item Numbers B5118
| Pos. | Description | Item no. |
| 18 | ORFS Cap | 358658 |
| 18.1 | ORFS Swivel Nut Elbow | 360705 |
| 18.2 | ORFS Male stud connector | 360667 |
| 19 | BSP Blanking Plug | 8022 13 00 |
| 19.1 | Orifice Sleeve - Pos. 91 | 1001082 |
| 20 | Test Point Male stud - Pos. 18 | 358709 |
| 21 | Check valve, cartridge - Pos. 12 | 1005434 |
| 22 | BSP Blanking plug | 8022 10 00 |
| 23 | BSP Blanking plug | 8022 10 00 |
| 24 | Check valve, cartridge - Pos. 236 | 1005866 |
| 25 | Test Point Male stud - Pos. 227 | 358701 |
| 26 | Cartridge valve - Pos. 235 | 1005434 |
| 27 | ORFS Cap | 358656 |
| 27.1 | Male stud connector | 360663 |
| 27.2 | Pressure Filter Insert - Pos. 250 | 1002165 |
| 28 | ORFS Cap | 358660 |
| 28.1 | ORFS Male stud connector | 360676 |
| 29 | Test Point Male stud - Pos. 248 | 358701 |
| 30 | BSP Blanking plug | 8022 10 00 |
| 30.1 | Orifice Sleeve - Pos.251 | 153006 |
| 31 | Check valve, cartridge - Pos. 238 | 1005866 |
| 32 | ORFS Cap | 358661 |
| 32.1 | ORFS Swivel Nut Elbow | 360703 |
| 32.2 | ORFS Male stud connector | 360657 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump Manifold
Applies for the following Item Numbers B5118
| Pos. | Description | Item no. |
| 33 | Ball Valve Handle | 1000447 |
| 34 | AE Locking Plate | AE02558 |
| 35 | Ball Valve Flange - Pos. 31 | 1000447 - S |
| 36 | Solenoid Valve - Pos. 34 | 1007589 |
| 36.1 | Coil | 1002650 |
| 37 | Pressure Transmitter - Pos. 17 | 634210 |
| 38 | ORFS Male stud connector | 360667 |
| 39 | Test Point Male stud - Pos. 83 and 32 | 358701 |
| 40 | BSP Blanking plug | 8022 13 00 |
| 41 | BSP Blanking Plug | 8022 34 00 |
| 42 | BSP Blanking Plug | 8022 21 00 |
| 43 | BSP Blanking Plug | 8022 10 00 |
| 44 | ORFS Male stud connector | 360667 |
| 45 | Hydraulic Operated Valve - 247 | 1007528 |
| 46 | Valve shaft - Pos. 85 | AE02579 |
| 46.1 | Double seal | 1001034 |
| 47 | AE Lock plate | AE02591 |
| 48 | Detent Plunger | 453900 |
| 49 | Lever Ball valve | 1001044 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump Manifold
Applies for the following Item Numbers B5118
| Pos. | Description | Item no. |
| 50 | Ball Valve Handle | 329290 |
| 51 | AE Locking Plate | AE02512 |
| 52 | Ball Valve Flange - Pos. 14 | 329290 - S |
| 53 | Relief valve - Pos. 13 | 1005000 |
| 54 | ORFS Male stud connector | 360667 |
| 55 | BSP Blanking Plug | 8022 13 00 |
| 56 | Check valve, cartridge - Pos. 237 | 1005866 |
| 57 | Ball Valve Flange - Pos. 27 | 329290 - S |
| 58 | AE Locking Plate | AE02546 |
| 59 | Detent Plunger | 453900 |
| 60 | Ball Valve Handle | 329290 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump Manifold
Applies for the following Item Numbers B5118
| Pos. | Description | Item no. |
| 61 | Pressure filter bowl | 1001040 |
| 62 | Pressure filter element - Pos. 11 | 1001041 |
| 63 | Check valve, cartridge - Pos.26 | 104571 |
| 64 | Bypass valve | 1001042 |
| 65 | BSP Blanking Plug | 8022 13 00 |
