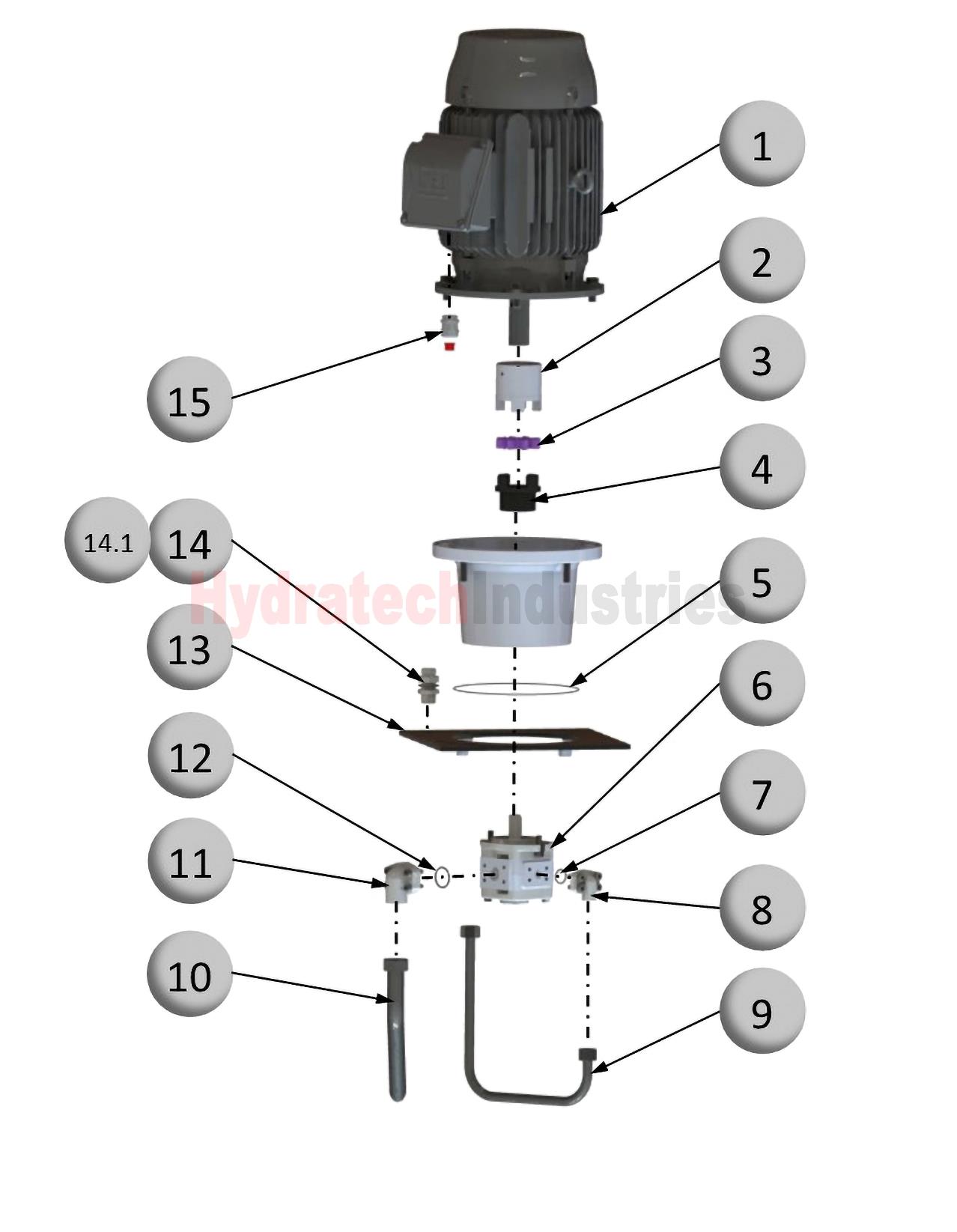

Motor pump assembly
Motor pump assembly
Applies for the following Item Numbers B6314 (50Hz), B6455 (60Hz)
| Pos. | Description | Item no. |
| 1 | El Motor for 50Hz - Pos. MA1 | 1010533 |
| 1 | El Motor for 60Hz - Pos. MA1 | 1011570 |
| 2 | Cable gland | 1010603 |
| 3 | Coupling motor - Pos. XP3 | 1011580 |
| 4 | Coupling pump - Pos. XP1 | 1010262 |
| 5 | O-Ring | 1010534 |
| 6 | Internal gear pump for 50Hz - Pos. GP1 | 1012006 |
| 6 | Internal gear pump for 60Hz - Pos. GP1 | 1010624 |
| 7 | O-Ring | 313301 |
| 8 | Flange | 1011917 |
| 9 | Pressure pipe for 50Hz | AE04703 |
| 9 | Pressure pipe for 60Hz | AE05911 |
| 10 | Suction pipe | AE04708 |
| 11 | Flange | 1010349 |
| 12 | O-Ring | 308840 |
| 13 | Bulkhead | 8V16S20 00 |
| 13.1 | Bonded seal | 479500 |
| 14 | Support part motor module plate | AE04704 |
| 15 | Coupling spider- Pos. XP2 | 1008078 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

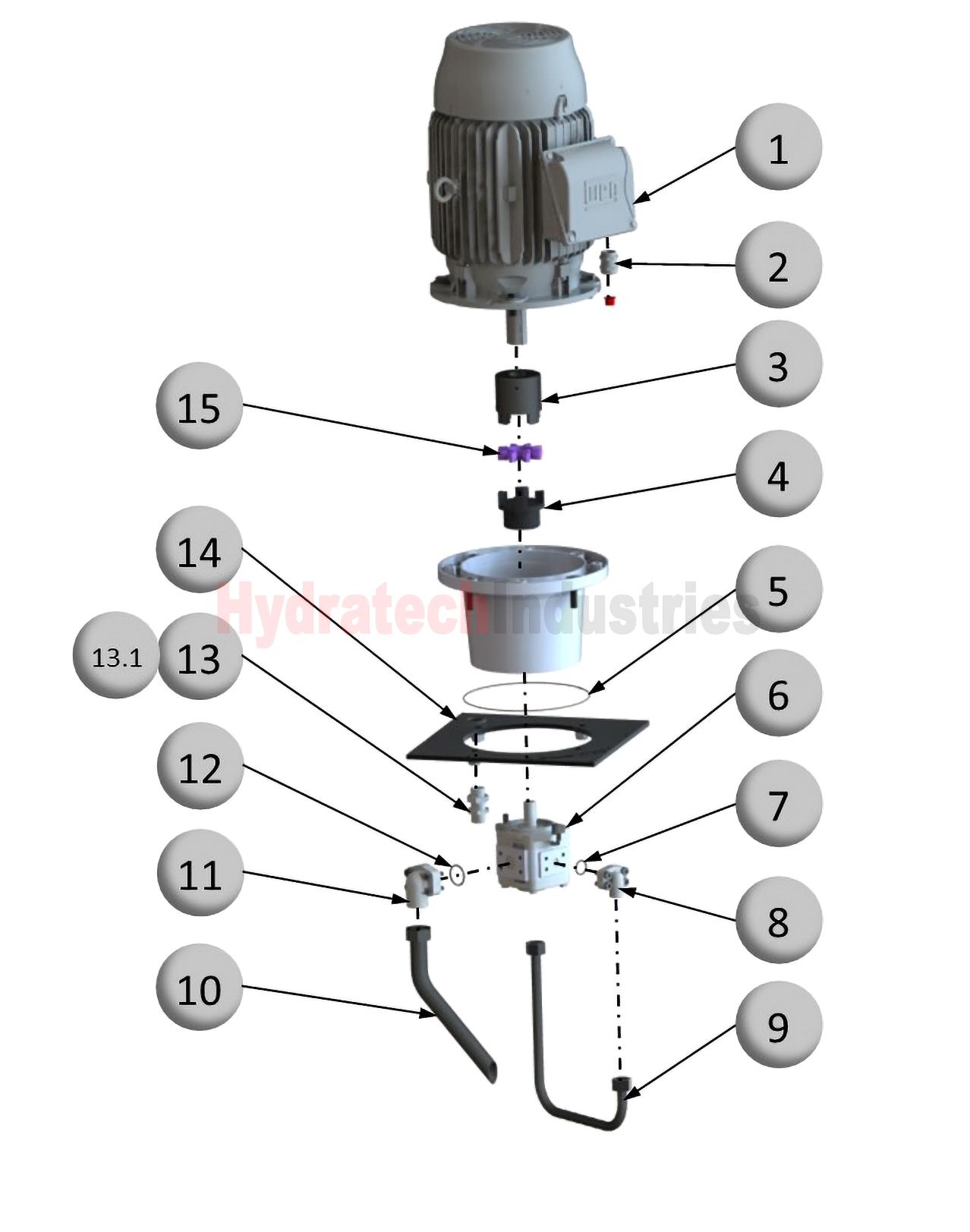

Motor pump assembly
Applies for the following Item Numbers B6315 (50Hz), B6454 (60Hz)
| Pos. | Description | Item no. |
| 1 | El Motor for 50Hz - Pos. MA2 | 1010533 |
| 1 | El Motor for 60Hz - Pos. MA2 | 1011570 |
| 2 | Coupling motor - Pos. XP6 | 1011580 |
| 3 | Coupling spider - Pos. XP5 | 1008078 |
| 4 | Coupling pump - Pos. XP4 | 1010262 |
| 5 | O-Ring | 1010534 |
| 6 | Internal gear pump for 50Hz - Pos. GP2 | 1012006 |
| 6 | Internal gear pump for 60Hz - Pos. GP2 | 1010624 |
| 7 | O-Ring | 313301 |
| 8 | Flange | 1011917 |
| 9 | Pressure pipe for 50Hz | AE04701 |
| 9 | Pressure pipe for 60Hz | AE05913 |
| 10 | Suction pipe | AE04708 |
| 11 | Flange | 1010349 |
| 12 | O-Ring | 308840 |
| 13 | Support part motor module plate | AE04700 |
| 14 | Bulkhead | 8V16S20 00 |
| 14.1 | Bonded seal | 479500 |
| 15 | Cable gland | 1010603 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
