Manifold assembly

Applies for the following Item Numbers B6689

Pos. Description Item no.
1 ORFS Male stud connector 360662
2 Sequence valve - Pos. 1V11 1010188
3 Cartridge Check valve - Pos. 1V10 1005866
4 Test point male stud - Pos. M4, M7 358701
5 ORFS Male stud connector 360670
6 ORFS Male stud connector 360662
7 Test point male stud - Pos. M1 358701
8 Cartridge Check valve - Pos. 1V3 1005866

No obligation to buy. You'll receive a quote

All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

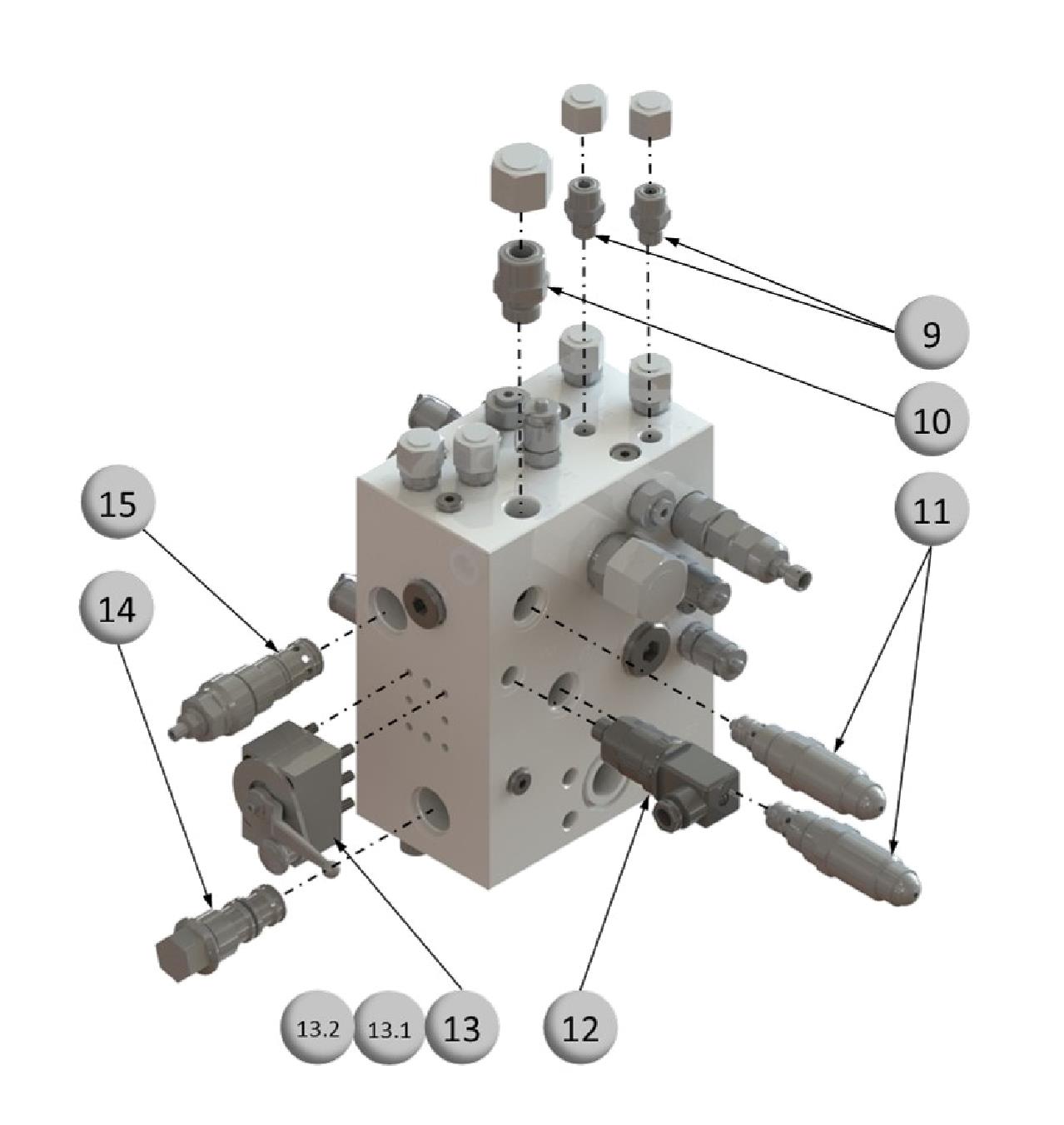

Manifold assembly

Applies for the following Item Numbers B6689

Pos. Description Item no.
9 ORFS Male stud connector 360662
10 ORFS Male stud connector 360667
11 Relief valve - Pos. 1V7, 1V8 1007108
12 Pressure transmitter - Pos. 1S1 1006862
13 Ball valve - Pos. 1V6 329290
13.1 Locking plate AE02546
13.2 Detent plunger 453900
14 Cartridge Check valve - Pos. 1V9 105024
15 Relief valve - Pos. 1V5 1008054

No obligation to buy. You'll receive a quote

All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Manifold assembly

Applies for the following Item Numbers B6689

Pos. Description Item no.
16 Pressure transmitter - Pos. 1S2 1006862
17 Test point male stud - Pos. M5 358701
18 ORFS Male stud connector 360662
19 ORFS Male stud connector 360670
20 Cartridge Check valve - Pos. 1V4 1008012
21 Test point male stud - Pos. M3, M2 358701
22 Flow control valve - Pos. 1V2 1008000
23 Cartridge Check valve - Pos. 1V1 1005866

No obligation to buy. You'll receive a quote

All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
