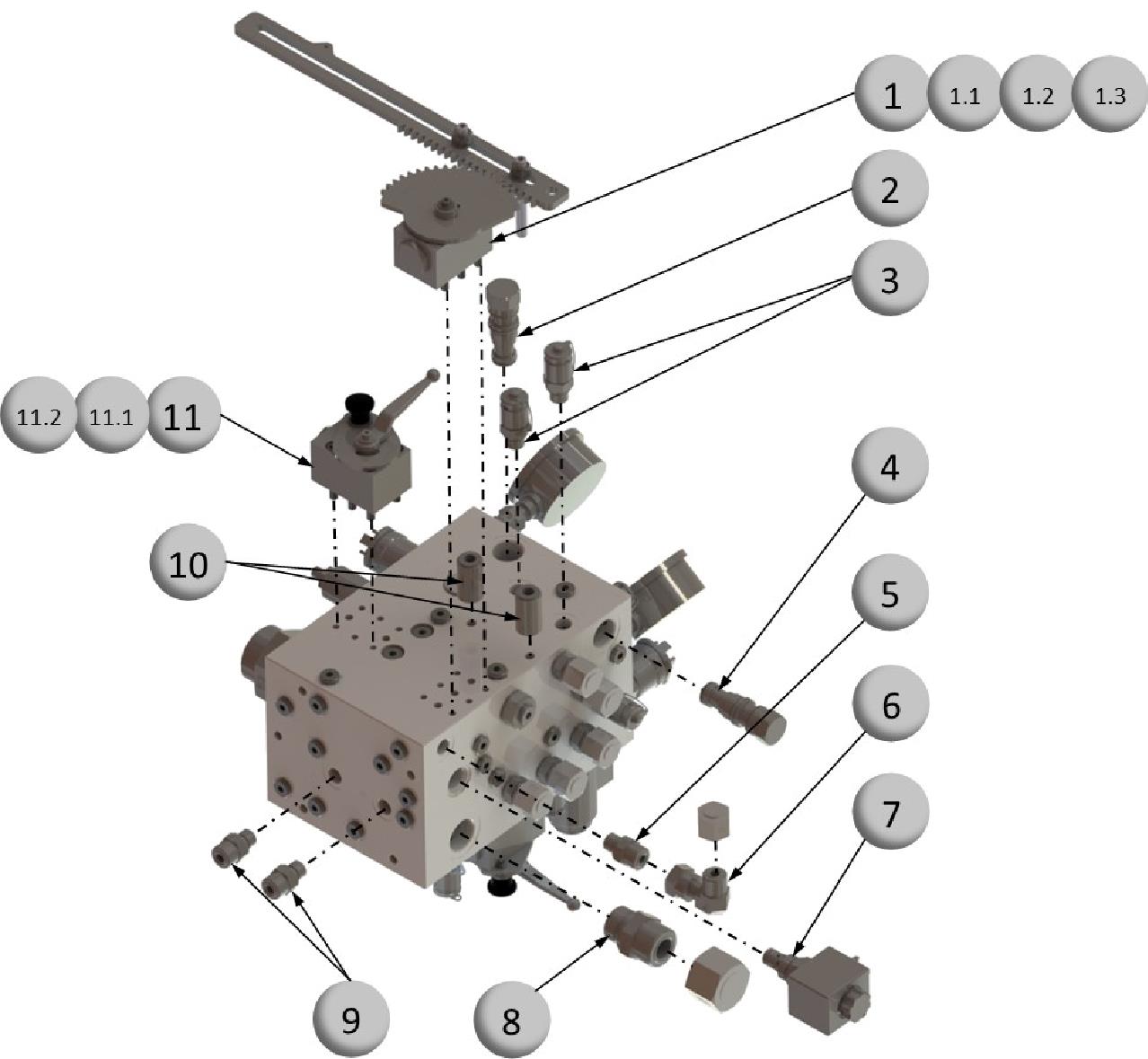

Pump manifold

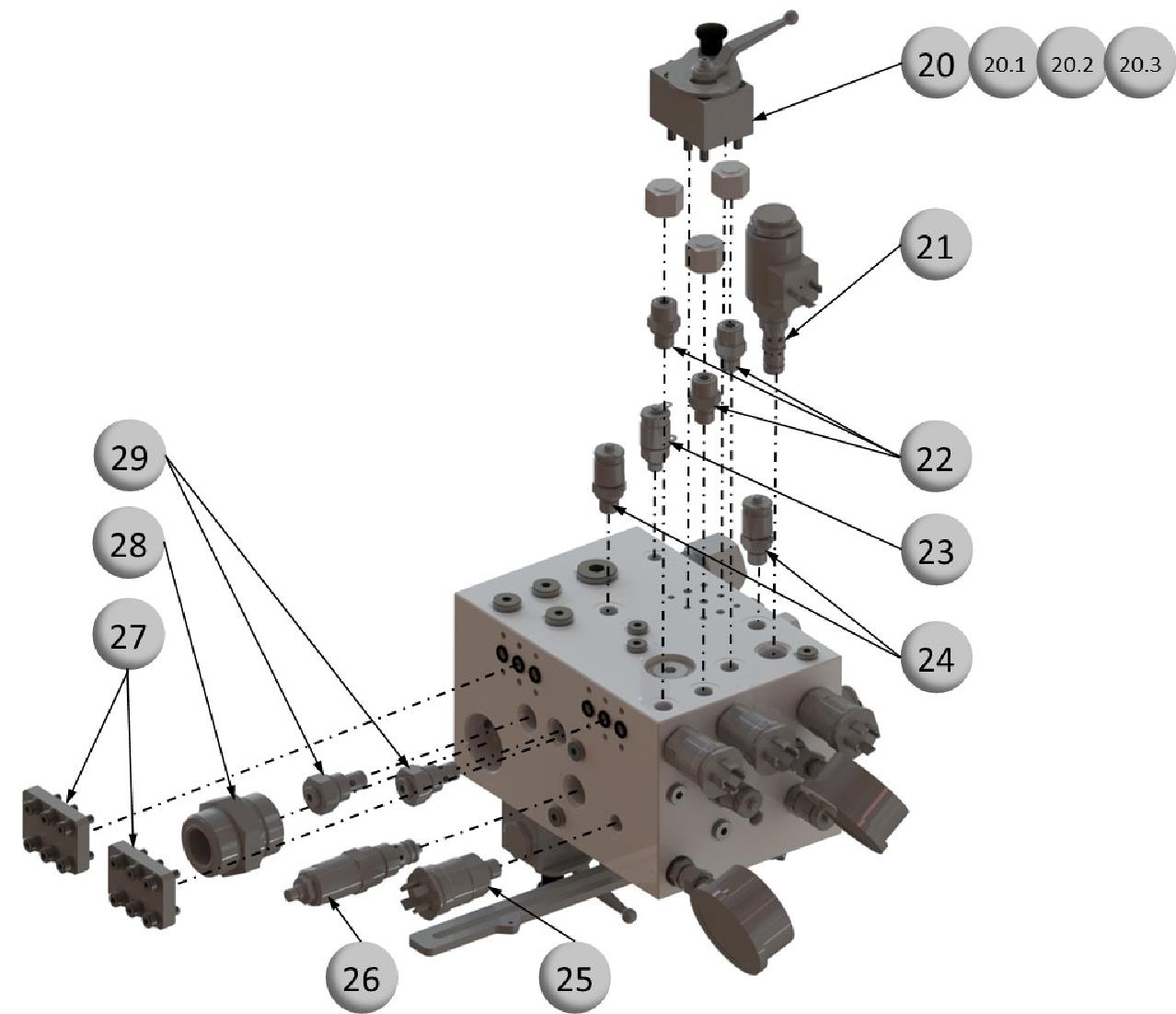

Pump manifold
Applies for the following Item Numbers B6657
| Pos. | Description | Item no. |
| 1 | Ball valve - Pos. 0V7 | 1009086 |
| 1.1 | AE Bracket | AE06182 |
| 1.2 | Locking plate | AE06181 |
| 1.3 | Spacer | 1007362 |
| 2 | Shuttle valve cartridge - Pos. 0V9 | 1012266 |
| 3 | Test coupling - Pos. M5, M6 | 358701 |
| 4 | Shuttle valve cartridge - Pos. 0V10 | 1012266 |
| 5 | ORFS Male stud connector | 360662 |
| 6 | ORFS swivel nut elbow | 360702 |
| 7 | Solenoid Cartridge valve - Pos. 0V1 | 1012277 |
| 8 | ORFS Male stud connector | 360670 |
| 9 | ORFS Male stud connector | 360662 |
| 10 | Spacer | 1008139 |
| 11 | Ball valve - Pos. 0V4 | 329290 |
| 11.1 | Locking plate | AE06180 |
| 11.2 | Detent plunger | 453900 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump manifold
Applies for the following Item Numbers B6657
| Pos. | Description | Item no. |
| 12 | Cartridge check valve - Pos. 0V19 | 1005866 |
| 13 | Test coupling - Pos. M3 | 358703 |
| 14 | Swivel gauge connector - Pos. 0V15, 0V2 | 211802 |
| 14.1 | Bonded seal | 478800 |
| 15 | Pressure gauge - Pos. 0Z8, 0Z4 | 184600 |
| 16 | Pressure transmitter - Pos. 0S4, 0S5, 0S7 | 634210 |
| 17 | Test coupling - Pos. M4 | 358701 |
| 18 | Test coupling - Pos. M2 | 358701 |
| 19 | ORFS Male stud connector | 360662 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

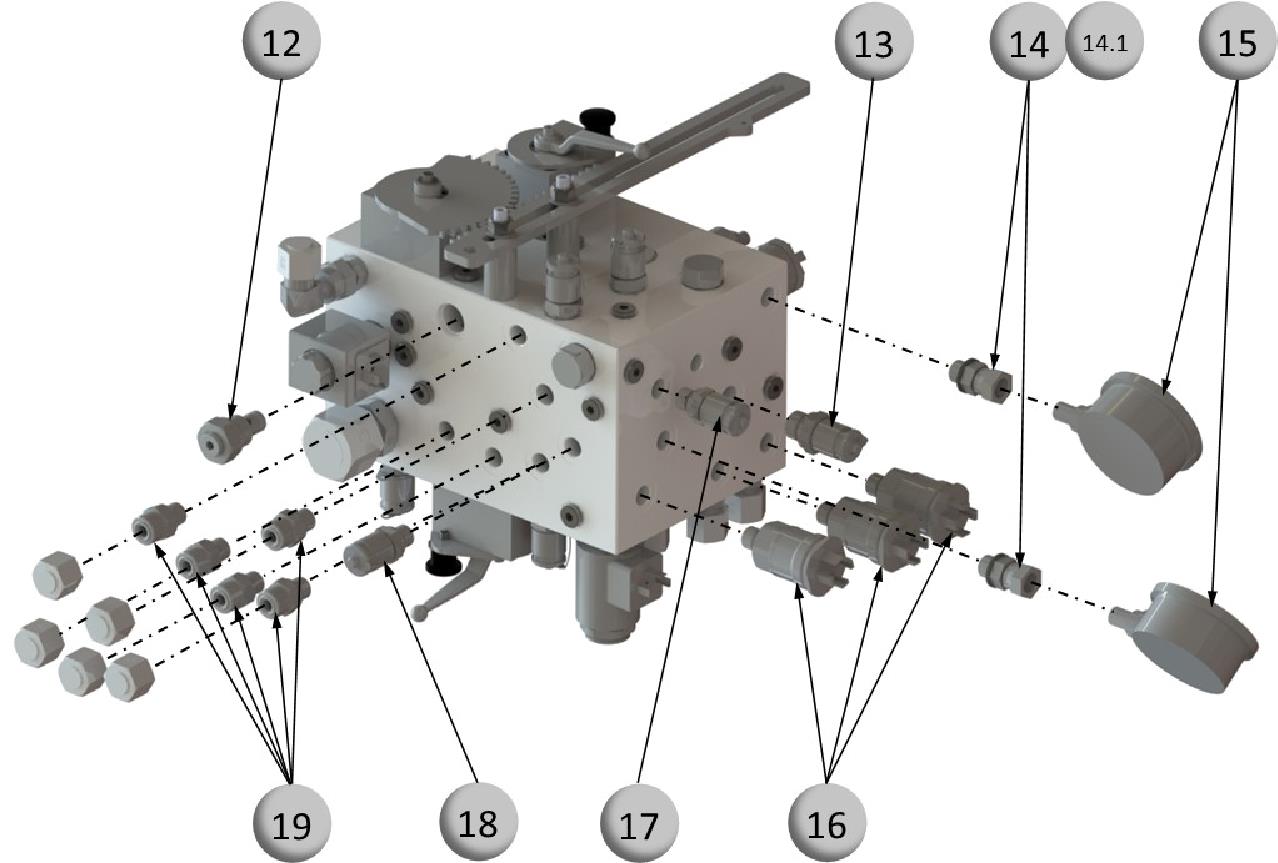

Pump manifold
