Pump manifold
Applies for the following Item Numbers B4645
/B4785_B5266_1.3.jpg&Format=jpg&Width=1278&Quality=75)
| Pos. | Description | Item no. |
| 1 | Solenoid valve CETOP - Pos. 25 | 1005791 |
| 2 | Original Hand pump Single stage - Pos. 80 | 1002142 |
| 2 | Upgraded Hand pump Single stage - Pos. 80 | 1012013 |
| 3 | Cartridge Check valve - Pos. 8, 9, 88 | 104579 |
| 4 | BSP Reducer male | 8075 42 21 |
| 5 | Ball valve - Pos. 252 | 329315 |
| 5.1 | Lever for ball valve | 329330 |
| 5.2 | Locking plate | AE02550 |
| 5.3 | Detent plunger | 453900 |
| 6 | AE Valve shaft - Pos. 85 | AE00433 |
| 7 | Locking plate | AE02549 |
| 8 | Lever for ball valve | 1006081 |
| 9 | Detent plunger | 453900 |
| 10 | Ball valve - Pos. 31 | 329300 |
| 10.1 | Locking plate | AE02545 |
| 10.2 | Lever for ball valve | 1007226 |
| 11 | Cartridge Check valve - Pos. 7 | 104579 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump manifold
Applies for the following Item Numbers B4645

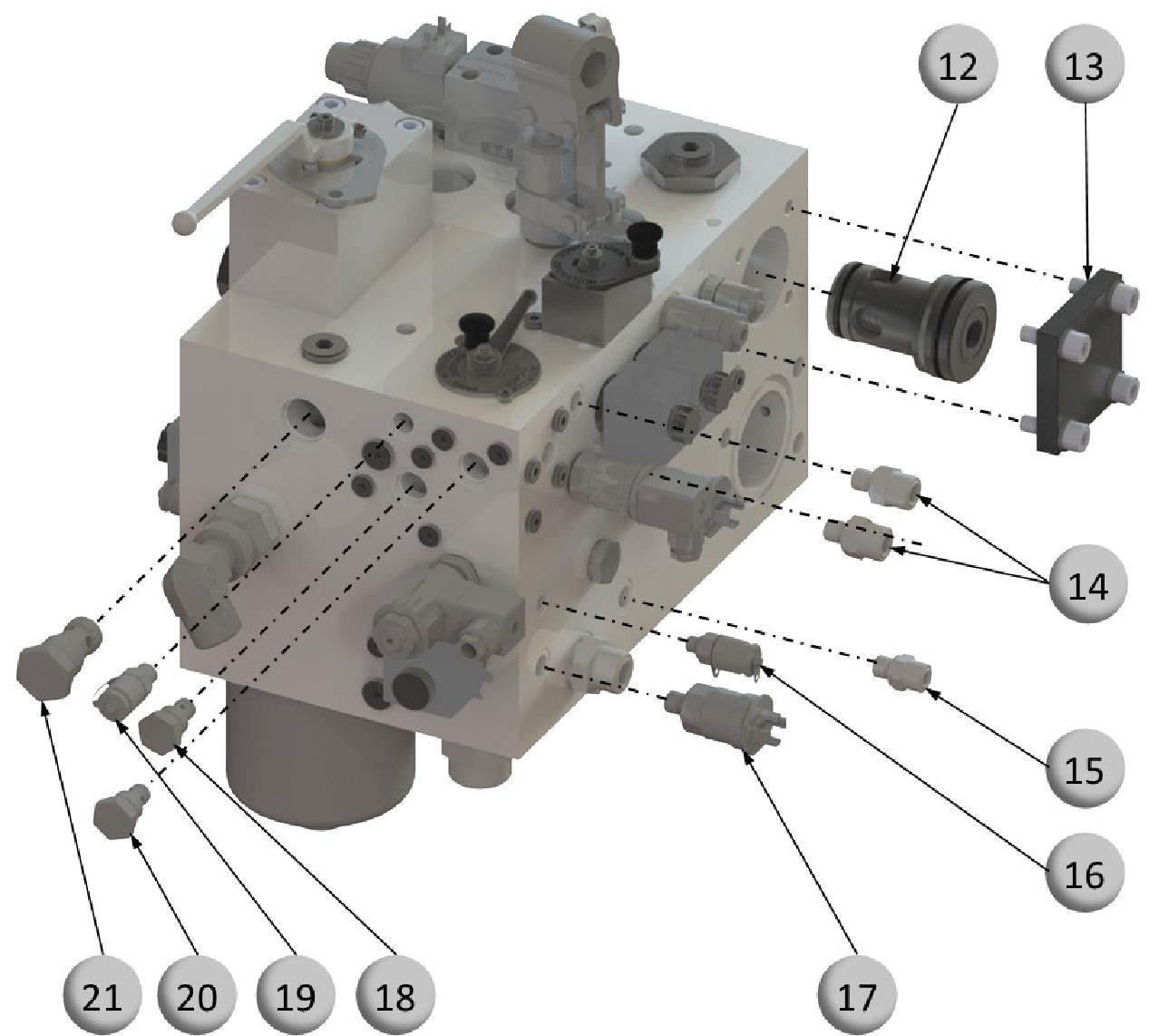

| Pos. | Description | Item no. |
