Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 1 | O-ring | 312051 |
| 2 | Flange seal | 1005771 |
| 3 | Manifold assembly El. Rotor lock | B4648SP |
| 4 | O-ring | 312051 |
| 5 | Pressure Pipe | AE01731 |
| 6 | Pressure Pipe | AE01730 |
| 7 | ORFS Swivel nut run tee | 1005824 |
| 8 | O-ring | 314100 |
| 9 | Pump manifold assembly | B4645S |
| 10 | O-ring | 309555 |
| 11 | O-ring | 311420 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 12 | EI motor - Pos. 86 | 1013929 |
| 13 | EI motor - Pos. 4,5,6 | 1005201 |
| 14 | Motor coupling | 171316 |
| 15 | Coupling Spider | 171120 |
| 16 | Pump coupling | 1000302 |
| 17 | Heat exchanger - Pos. 60/61 | 1002051 |
| 18 | Electrical Box | B4647 |
| 19 | Pump coupling | 171299 |
| 20 | Coupling Spider | 1001139 |
| 21 | Motor coupling | 171304 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

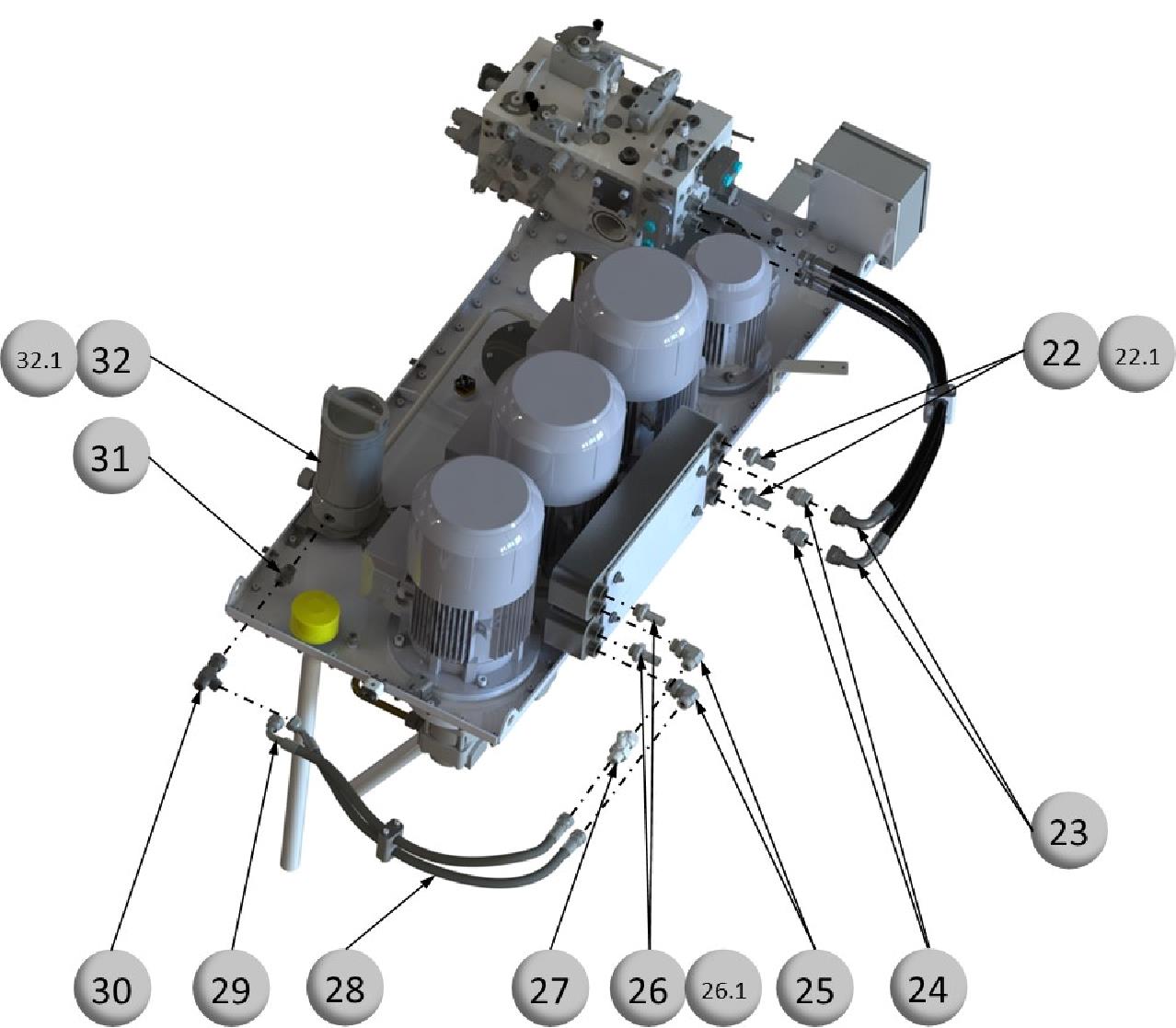

Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 22 | Cooling fitting Hose connector | AE00443 |
| 22.1 | O-ring | 1002002 |
| 23 | AE Pressure hose | AE01746 |
| 24 | ORFS Male stud connector | 360670 |
| 25 | ORFS Male stud elbow | 360714 |
| 26 | Cooling fitting Hose connector | AE00443 |
| 26.1 | O-ring | 1002002 |
| 27 | ORFS female swivel | 1000991 |
| 28 | Pressure hose | AE01761 |
| 29 | Pressure hose | AE01760 |
| 30 | ORFS Swivel nut run tee | 1002013 |
| 31 | ORFS Male stud connector | 360669 |
| 32 | Offline filter - Pos. 19 | 1012819 |
| 32.1 | Filter element | 1005884 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 33 | Level Switch - Pos. 21 | 1005234 |
| 34 | ORFS Male stud elbow | 360714 |
| 35 | Return filter - Pos. 30 | 1002077 |
| 35.1 | Filter element | 1002124 |
| 36 | Pipe clamp | 298200 |
| 37 | ORFS Male stud connector | 360662 |
| 38 | Pressure Pipe | AE01759 |
| 39 | ORFS Male stud connector | 1005883 |
| 40 | ORFS Male stud connector | 360662 |
| 41 | Clamp for Hose | 1005913 |
| 42 | Air breather - Pos. 20 | 722120 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 43 | Suction Pipe | AE01541 |
| 44 | ORFS Male stud connector | 360667 |
| 45 | Flange | 179500 |
| 46 | External gear pump - Pos. 87 | 1001590 |
| 47 | Suction Pipe | AE01539 |
| 48 | ORFS Male stud connector | 360660 |
| 49 | Internal gear pump - Pos. 3 | 1000258 |
| 50 | Internal gear pump Double - Pos. 2 | 1005878 |
| 51 | ORFS Male stud elbow | 1000161 |
| 52 | Suction Pipe | AE01752 |
| 53 | Internal gear pump - Pos. 1 | 1000258 |
| 54 | ORFS Male stud connector | 360660 |
| 55 | AE Suction pipe | AE01537 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 56 | ORFS Male stud connector | 360669 |
| 57 | AE Return pipe | AE01535 |
| 58 | ORFS Male stud connector | 360669 |
| 59 | ORFS Male stud connector | 360669 |
| 60 | Suction Pipe | AE01543 |
| 61 | Pressure Pipe | AE01533 |
| 62 | Pressure Pipe | AE01536 |
| 63 | ORFS Male stud connector | 360667 |
| 64 | Flange | 179500 |
| 65 | Pressure Pipe | AE01753 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 66 | Cartridge Check valve - Pos. 16 | 104574 |
| 67 | Cavity manifold | 1005886 |
| 68 | ORFS Male stud connector | 360667 |
| 69 | ORFS Male stud swivel | 1005896 |
| 70 | ORFS Swivel nut run tee | 1002013 |
| 71 | Pressure hose | AE01762 |
| 72 | ORFS Male stud connector | 360669 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 73 | Edge list | 1001944 |
| 74 | Piston Accu. 10L P0=180 bar - CW Pos. 70 | 1001029 |
| 74.1 | Gas filling valve | 23325 |
| 74.2 | Cover for Gas filling valve | 8200457 |
| 74.3 | Seal kit | 7014648 |
| 75 | Temperature Transmitter - Pos. 24 | 666665 |
| 75.1 | Bonded seal | 478800 |
| 76 | Fitting | 557536 |
| 77 | Pressure Pipe | AE01542 |
| 78 | ORFS Male stud connector | 1001031 |
| 79 | Pressure Pipe | AE01545 |
| 80 | Handle for hand pump | 1002202 |
| 81 | Pipe clamp | 297900 |
| 82 | Tank seal | AI00102 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 83 | Pipe clamp | 297300 |
| 84 | Pressure Pipe | AE01727 |
| 85 | Pressure Pipe | AE01726 |
| 86 | Return Pipe | AE01648 |
| 87 | Pressure Pipe | AE01647 |
| 88 | Pipe clamp | 297600 |
| 89 | Piston Accu. 15L P0=120 bar - NW | 1001853 |
| 89.1 | Gas filling valve | 23325 |
| 89.2 | Seal kit | 7013056 |
| 90 | Edge list | 1001944 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B4646
| Pos. | Description | Item no. |
| 91 | Vibration damper | 1005233 |
| 92 | ORFS Male stud elbow | 360715 |
| 93 | ORFS Male stud swivel | 360688 |
| 94 | Ball valve - Pos. 35 | 9596333 |
| 95 | ORFS Plug | 1005835 |
| 96 | ORFS Blanking plug male | 1002199 |
| 97 | Level gauge - Pos. 22 | 203950 |
| 97.1 | X-ring | 307405 |
| 98 | ORFS Blanking plug male | 358666 |
| 99 | Level gauge | 203940 |
| 99.1 | X-ring | 307405 |
| 100 | Return Pipe | AE01652 |
| 101 | Pipe clamp | 297200 |
