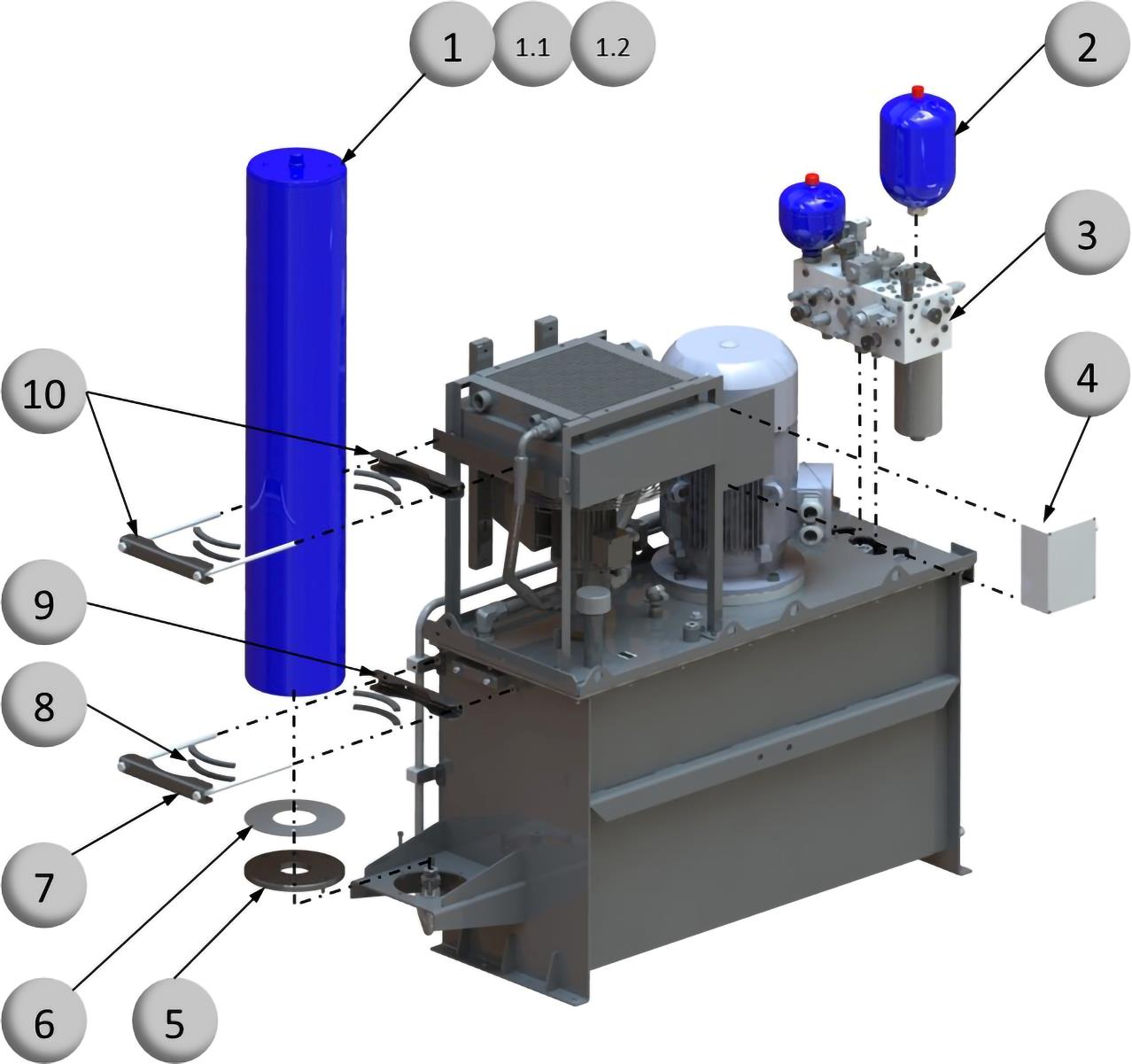

Tank
Applies for the following Item Numbers B5660
| Pos. | Description | Item no. |
| 1 | Piston Accu. 32 L P0=110 bar - CW - Pos. 24 | 20018103 |
| 1.1 | Gas valve | 20011955 |
| 1.2 | Seal kit | 20008751 |
| 2 | Diaphragm Accu. 3.5 L P0=130 bar - NW - Pos. 107 | 1010622 |
| 3 | Pump manifold assembly - Pos. 20 | B6567SP |
| 4 | Electrical box assembly | B6257 |
| 5 | Accumulator cover plate | AE03290 |
| 6 | Accumulator seal | AE01942 |
| 7 | Bracket | AI00525 |
| 8 | Edge list | 1006511 |
| 9 | Bracket | AE03173 |
| 10 | Bracket | AI00525 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

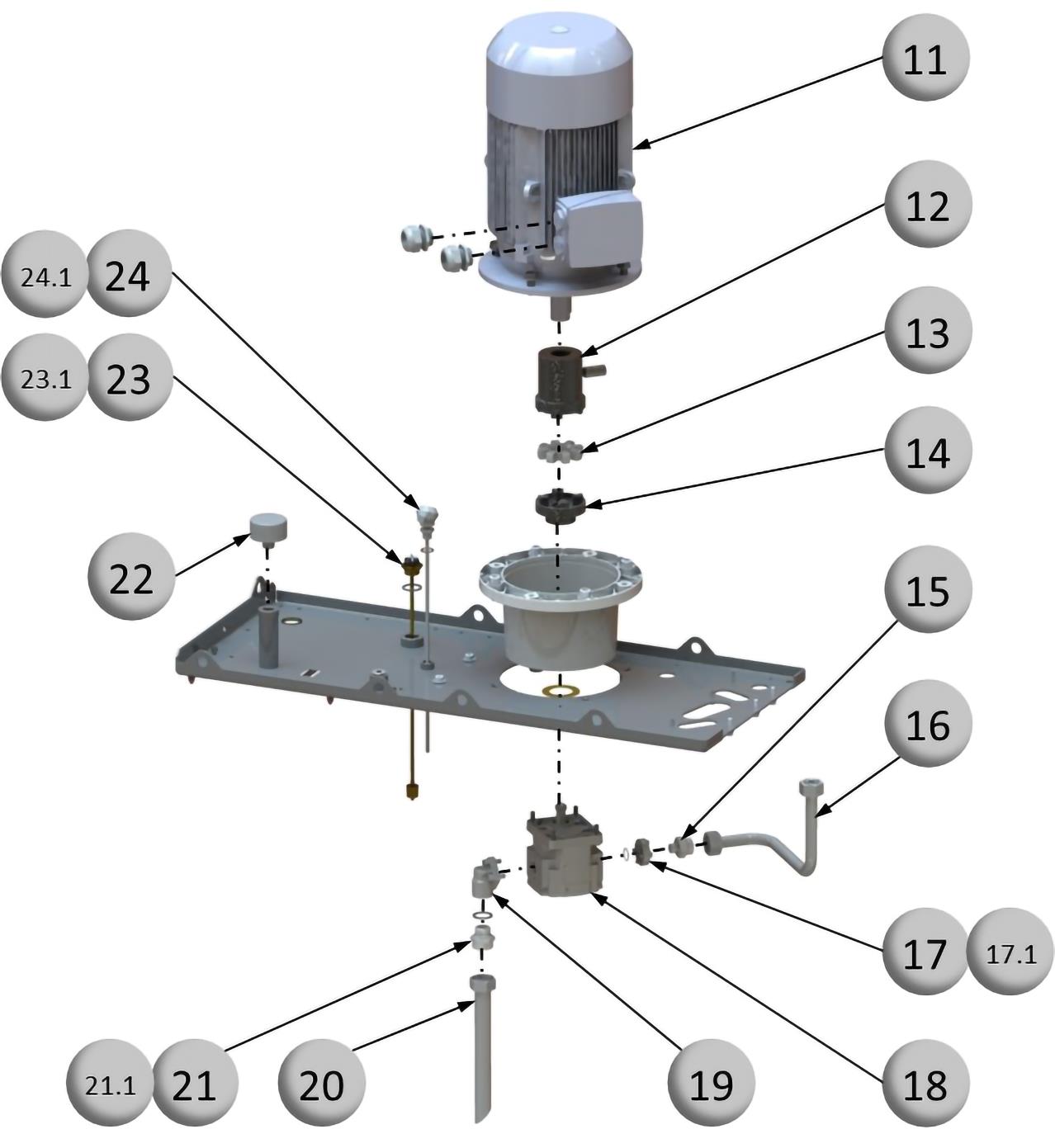

Tank
Applies for the following Item Numbers B5660
| Pos. | Description | Item no. |
| 11 | EI motor - Pos. 8 | 1008711 |
| 12 | Coupling motor - Pos. 5 | 201795 |
| 13 | Rubber spider - Pos. 6.1 | 201700 |
| 14 | Coupling pump - Pos. 6 | 201745 |
| 15 | Male stud connector | 8011S25 21 |
| 16 | Pressure pipe | AE06016 |
| 17 | Flange for gear pump | AE06010 |
| 17.1 | O - ring | 1012047 |
| 18 | External gear pump - Pos. 2 | 1007344 |
| 19 | Flange for gear pump | 179700 |
| 20 | Suction pipe | AI00589 |
| 21 | Male stud connector | 8011L35 34 |
| 21.1 | Bonded seal | 479500 |
| 22 | Spin on air filter - Pos. 10 | 1003141 |
| 23 | Level switch - Pos. 9.2 | 1007350 |
| 23.1 | Bonded seal | 479500 |
| 24 | Temperature gauge - Pos. 9.1 | 1006233 |
| 24.1 | Bonded seal | 479100 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B5660
| Pos. | Description | Item no. |
| 25 | Oil cooler - Pos. 65 | 1009332 |
| 26 | Male stud connector | 1008465 |
| 27 | Bulkhead elbow coupling | 8V12L28 00 |
| 28 | Bonded seal | 1006405 |
| 29 | Suction pipe | AI00590 |
| 30 | Tank seal | AI00554 |
| 31 | Bracket pipe clamp support | AI00522 |
| 32 | Male stud connector | 8011S20 34 |
| 33 | Accumulator pipe | AE04351 |
| 34 | Pipe clamp | 1006315 |
| 35 | Bottom plate | AI00514 |
| 36 | Bonded seal | 1006405 |
| 37 | Bulkhead straight coupling | 8V16L28 00 |
| 37.1 | Bonded seal | 1006405 |
| 38 | Suction hose | AE04059 |
| 39 | Hose clamp | 1002686 |
| 40 | Suction hose | AE04087 |
| 41 | Male stud connector | 8011L28 34 |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

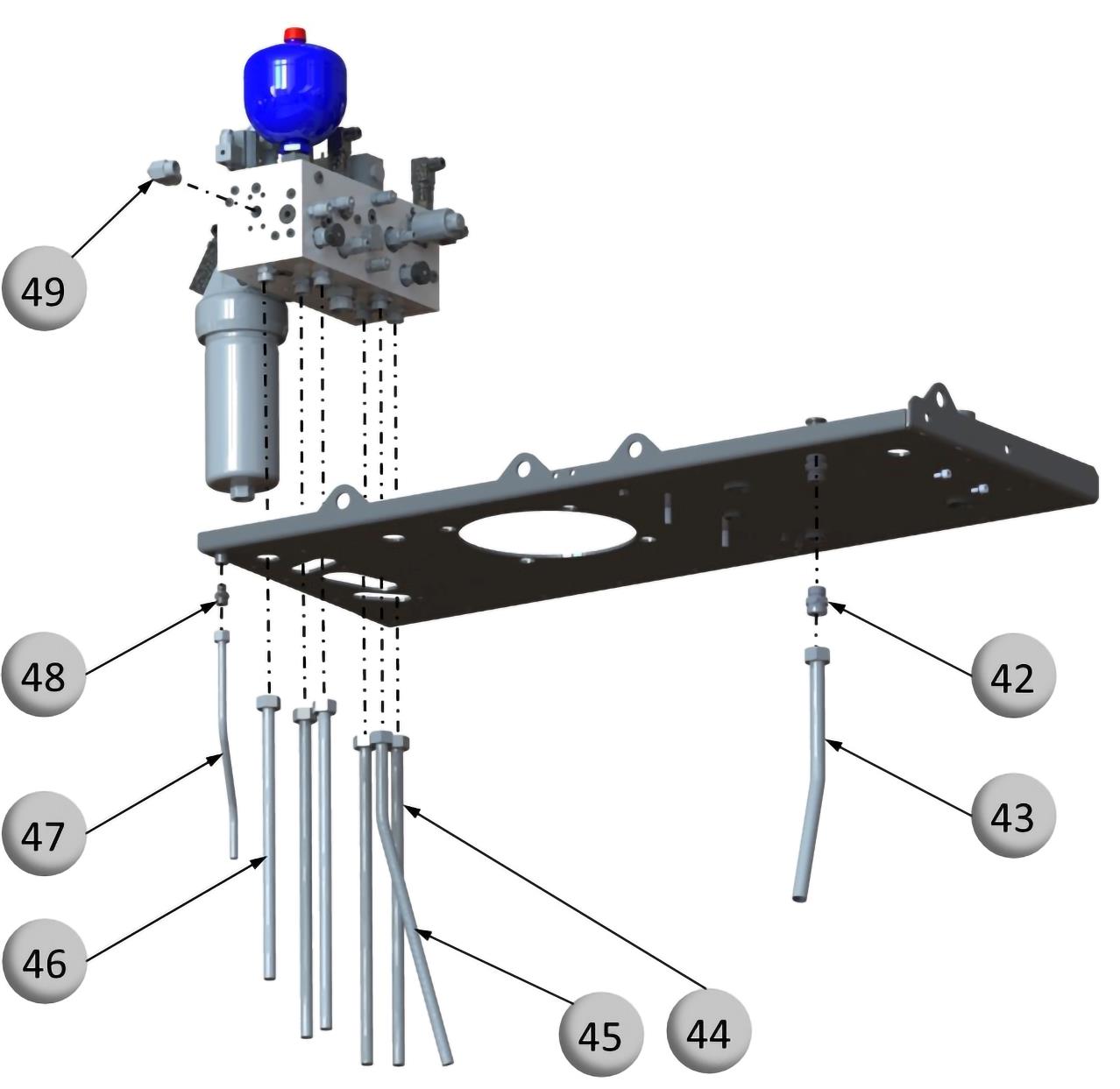

Tank
Applies for the following Item Numbers B5660
| Pos. | Description | Item no. |
| 42 | Male stud connector | 8011L22 27 |
| 43 | AE Pipe | AI00532 |
| 44 | Return pipe | AI00527 |
| 45 | Return pipe | AI01789 |
| 46 | Return pipe | AE01948 |
| 47 | AE Pipe | AE01947 |
| 48 | Male stud connector | 8011L12 13 |
| 49 | Male stud elbow | 1006637 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B5660
| Pos. | Description | Item no. |
| 50 | Return pipe | AI00539 |
| 51 | Male stud connector | 8011L42 49 |
| 52 | Male stud connector | 1006404 |
| 52.1 | Bonded seal | 479700 |
| 53 | Check valve - Pos. 13 | 1006248 |
| 53.1 | Bonded seal | 479700 |
| 54 | Flange | AE06245 |
| 54.1 | Test point male stud - Pos. 14 | 358701 |
| 55 | Ball valve - Pos. 11 | 9596333 |
| 56 | Male stud swivel | 8501L15 21 |
| 57 | Male stud elbow | 1006317 |
| 58 | Level gauge - Pos. 12.2 | 203940 |
| 59 | Level gauge - Pos. 12.1 | 1006939 |
