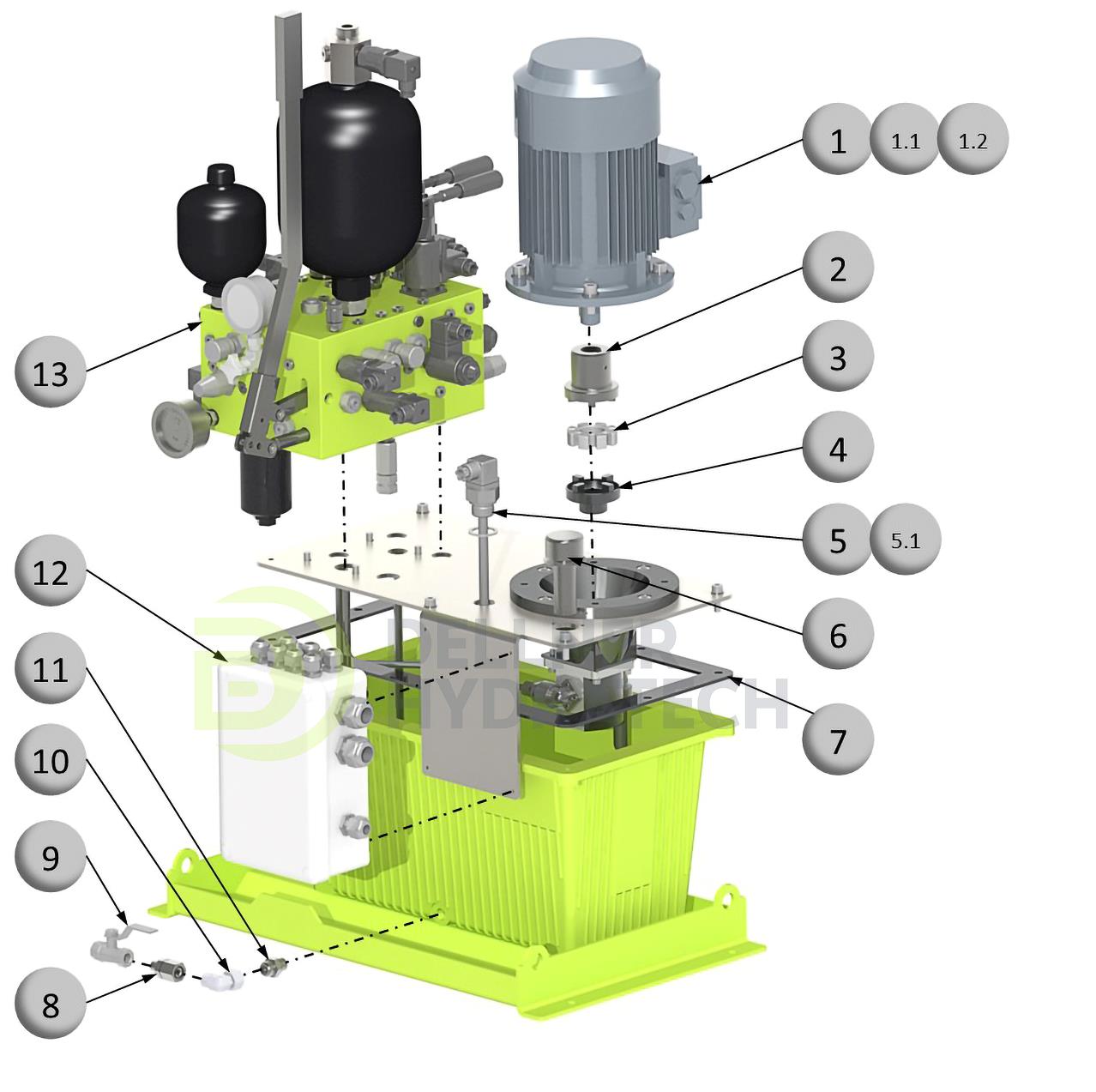

Tank
Applies for the following Item Numbers B5398
Pos. | Description | Item no. |
1 | El motor - Pos. M1 | 1013929 |
1.1 | Cable gland plug | 662080 |
1.2 | Cable gland reduction | 662221 |
2 | Motor coupling | 201770 |
3 | Coupling spider | 201500 |
4 | Pump coupling | 201720 |
5 | Level switch - Pos. S1 | 1012388 |
5.1 | Bonded seal | 479300 |
6 | Air breather flange mount - Pos. 3 | 137700 |
7 | Tank seal | AH3206 |
8 | Male stud swivel | 8501L12 13 |
9 | Ball valve - Pos. 39 | 4902 10 13 |
10 | Swivel nut elbow | 8072L12 00 |
11 | Male stud connector | 8011L12 17 |
12 | Electrical box assembly - Pos. 40 | B5445 |
13 | Pump manifold assembly | B5457SP |
No obligation to buy. You'll receive a quote
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Tank
Applies for the following Item Numbers B5398
Pos. | Description | Item no. |
14 | Return pipe | AI01706 |
15 | Male stud connector | 8011L12 13 |
16 | Pressure pipe | AI01685 |
17 | Suction pipe | AI01690 |
18 | Level gauge - Pos. 2 | 143400 |
19 | Male stud connector | 8011L08 17 |
20 | Flange for gear pump | 179398 |
21 | Suction pipe | AH3823 |
22 | Flange for gear pump | 179398 |
23 | External gear pump - Pos. 4 | 175790 |
