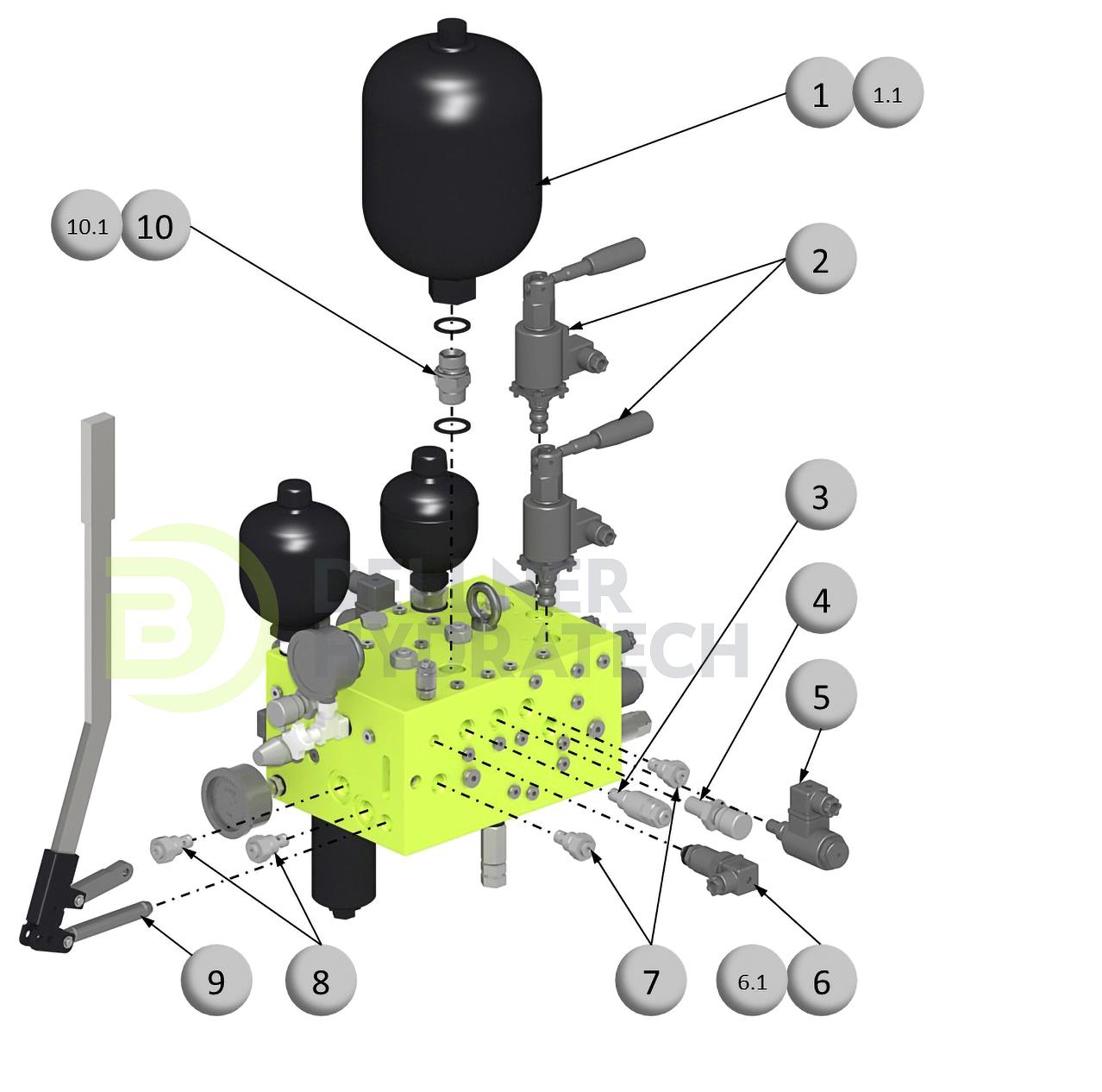

Pump manifold
Applies for the following Item Numbers B5395
| Pos. | Description | Item no. |
| 1 | Diaphragm accu. 2.8L P0=0 bar NW - Pos. 20 | 1006570 |
| 1.1 | Bonded seal | 479300 |
| 2 | Solenoid valve - Pos. Y5, Y4 | 1006227 |
| 3 | Relief valve - Pos. 12 | 1005776 |
| 4 | Flow control valve - Pos. 22 | 211205 |
| 5 | Solenoid valve - Pos. Y3 | 1013009 |
| 6 | Pressure switch - Pos. S2 | 1008732 |
| 6.1 | Bonded seal | 478800 |
| 7 | Cartridge Check valve - Pos. 11, 19 | 1005866 |
| 8 | Cartridge Check valve - Pos. 6, 9 | 1005866 |
| 9 | Hand pump complete - Pos. 8 | B4205 |
| 10 | BSP Union straight | 458200 |
| 10.1 | Bonded seal | 479300 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump manifold
Applies for the following Item Numbers B5395
| Pos. | Description | Item no. |
| 11 | Diaphragm accu. 0.5L P0=110 bar NW - Pos. 29 | 1008713 |
| 11.1 | Bonded seal | 479100 |
| 12 | BSP Union straight | 458000 |
| 12.1 | Bonded seal | 479100 |
| 13 | Cartridge Check valve - Pos. 13, 28 | 1005866 |
| 14 | Test coupling - Pos. 38 | 358702 |
| 15 | Pressure gauge - Pos. 21 | 1006922 |
| 16 | Gauge valve | 211480 |
| 16.1 | Bonded seal | 478800 |
| 17 | Flow control valve - Pos. 35 | 211205 |
| 18 | Pressure gauge - Pos. 15 | 185100 |
| 19 | BSP Swivel gauge connector | 211802 |
| 19.1 | Bonded seal | 478800 |
| 20 | Clog indicator - Pos. 10.1 | 203775 |
| 21 | Solenoid valve - Pos. Y6 | 1002687 |
| 21.1 | Coil for Solenoid valve | 1002650 |
| 22 | Solenoid valve - Pos. Y1 | 1013009 |
| 23 | Cartridge double pilot operated valve - Pos. 23, 24 | 1008188 |
| 24 | Cartridge Check valve - Pos. 32.1 | 104569 |
| 25 | Male stud connector | 459400 |
| 25.1 | Bonded seal | 479300 |
| 26 | Diaphragm accu. 0.32L P0=0 bar NW - Pos. 14 | 1008828 |
| 26.1 | Bonded seal | 479100 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump manifold
Applies for the following Item Numbers B5395
| Pos. | Description | Item no. |
| 27 | Inline check valve - Pos. 7 | 207600 |
| 27.1 | Bonded seal | 478800 |
| 28 | BSP Union straight | 457800 |
| 28.1 | Bonded seal | 478800 |
| 29 | Male stud connector | 8011L10 10 |
| 30 | Relief valve - Pos. 33 | 1008715 |
| 31 | Solenoid valve - Pos. Y7, Y8 | 1013009 |
| 32 | Test coupling - Pos. 26, 25 | 358702 |
| 33 | Solenoid valve - Pos. Y2 | 1002687 |
| 33.1 | Coil for Solenoid valve | 1002650 |
| 34 | Pressure switch - Pos. S1 | 1001865 |
| 34.1 | Bonded seal | 478800 |
| 35 | Test coupling - Pos. 17, 31 | 358702 |
| 36 | Flow control valve - Pos. 18 | 211205 |
| 37 | Pressure transmitter- Pos. B1 | 634203 |
| 37.1 | Bonded seal | 478800 |
| 38 | Bypass valve - Pos. 10.2 | 141450 |
| 38.1 | Bonded seal | 479100 |
| 39 | Male stud connector | 8011L08 13 |
| 40 | Pressure filter element | 138825 |
| 41 | Pressure filter bowl - Pos. 10 | 137795 |
