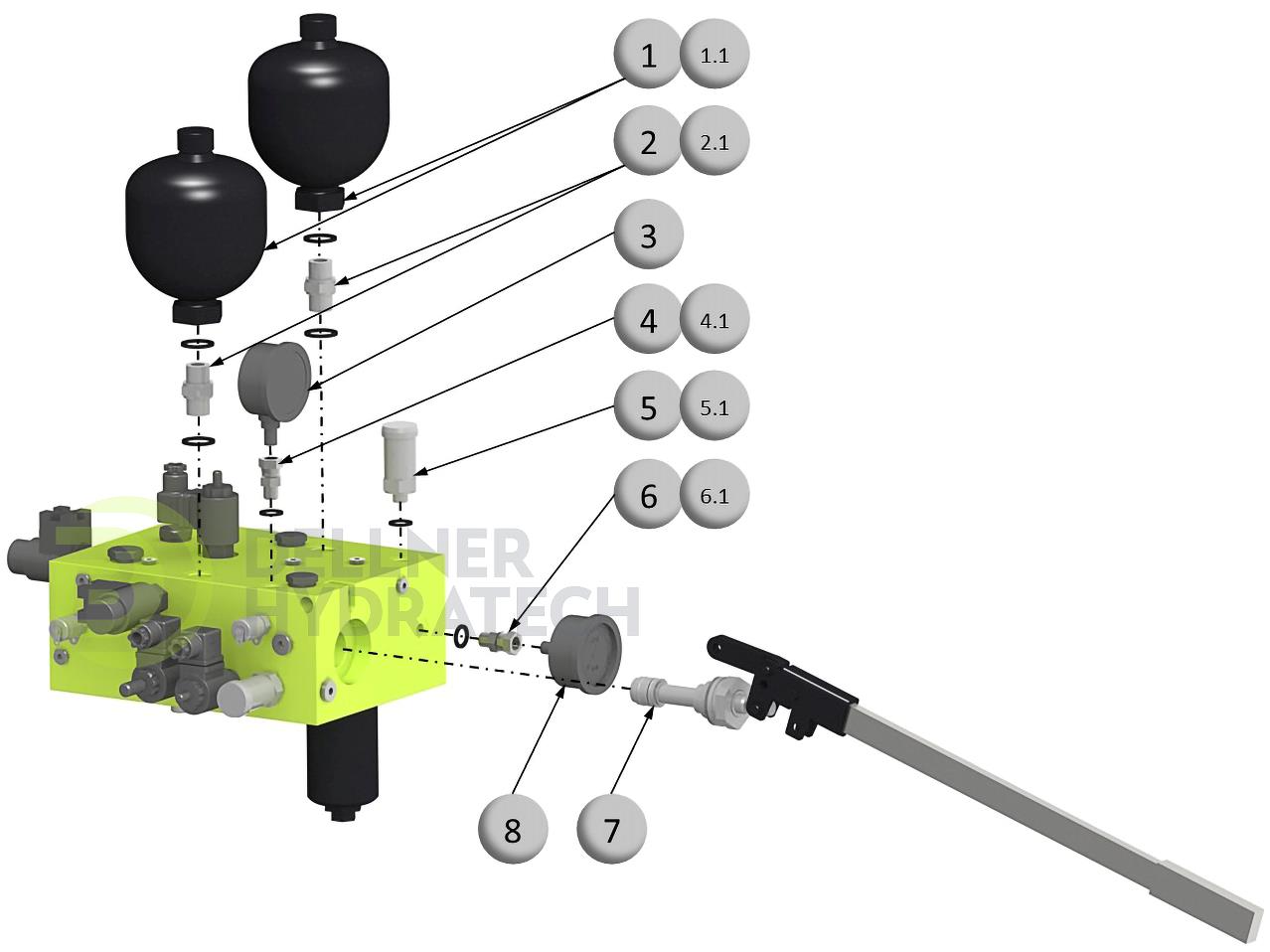

Pump manifold
Applies for the following Item Numbers B4213
| Pos. | Description | Item no. |
| 1 | Diaphragm accu. 0.75L P0=210 bar NW & CW - Pos. 14, 20 | 156750 |
| 1.1 | Bonded seal | 479100 |
| 2 | BSP Union straight | 458000 |
| 2.1 | Bonded seal | 479100 |
| 3 | Pressure gauge - Pos. 15 | 184500 |
| 4 | BSP Swivel gauge connector | 211802 |
| 4.1 | Bonded seal | 478800 |
| 5 | Pressure switch - Pos. 34 | 1001812 |
| 5.1 | Bonded seal | 478800 |
| 6 | BSP Swivel gauge connector | 211802 |
| 6.1 | Bonded seal | 478800 |
| 7 | Hand pump complete - Pos. 8 | B4220 |
| 8 | Pressure gauge - Pos. 21 | 185100 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Pump manifold
Applies for the following Item Numbers B4213
| Pos. | Description | Item no. |
| 9 | Solenoid valve - Pos. 33 | 1011944 |
| 10 | Cartridge Check valve - Pos. 16 | 104573 |
| 11 | Test coupling - Pos. 17 | 358702 |
| 12 | Solenoid valve - Pos. 31 | 408020 |
| 12.1 | Coil for Solenoid valve | 408010 |
| 13 | Pressure switch - Pos. 35 | 1001865 |
| 13.1 | Bonded seal | 478800 |
| 14 | Test coupling - Pos. 25 | 358702 |
| 15 | Solenoid valve - Pos. 36 | 1011944 |
| 16 | Solenoid valve - Pos. 37 | 1011945 |
| 17 | Solenoid valve - Pos. 32 | 408020 |
| 17.1 | Coil for Solenoid valve | 408010 |
| 18 | Cartridge pilot operated valve - Pos. 23, 24 | 104686 |
No obligation to buy. You'll receive a quote
)
All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

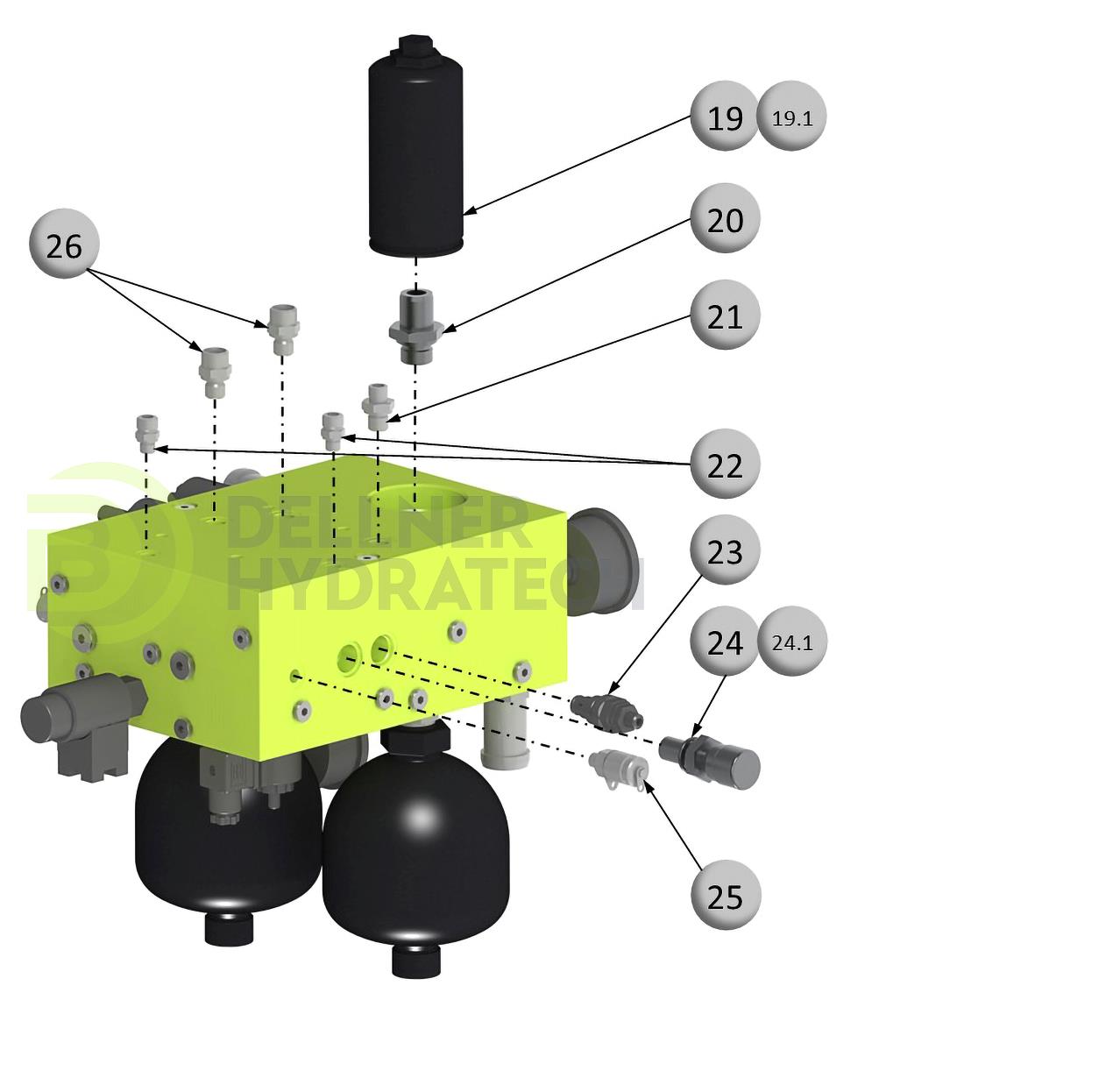

Pump manifold
Applies for the following Item Numbers B4213
| Pos. | Description | Item no. |
| 19 | Pressure filter bowl - Pos. 10 | 137795 |
| 19.1 | Pressure filter element | 138825 |
| 20 | Fitting for filter element | AH3623 |
| 21 | Male stud connector | 8011L08 13 |
| 22 | Male stud connector | 8011L10 10 |
| 23 | Relief valve - Pos. 12 | 104236 |
| 24 | Flow control valve - Pos. 22 | 211205 |
| 24.1 | O-ring | 311800 |
| 25 | Test coupling - Pos. 26 | 358702 |
| 26 | Male stud connector | 8011L12 13 |
