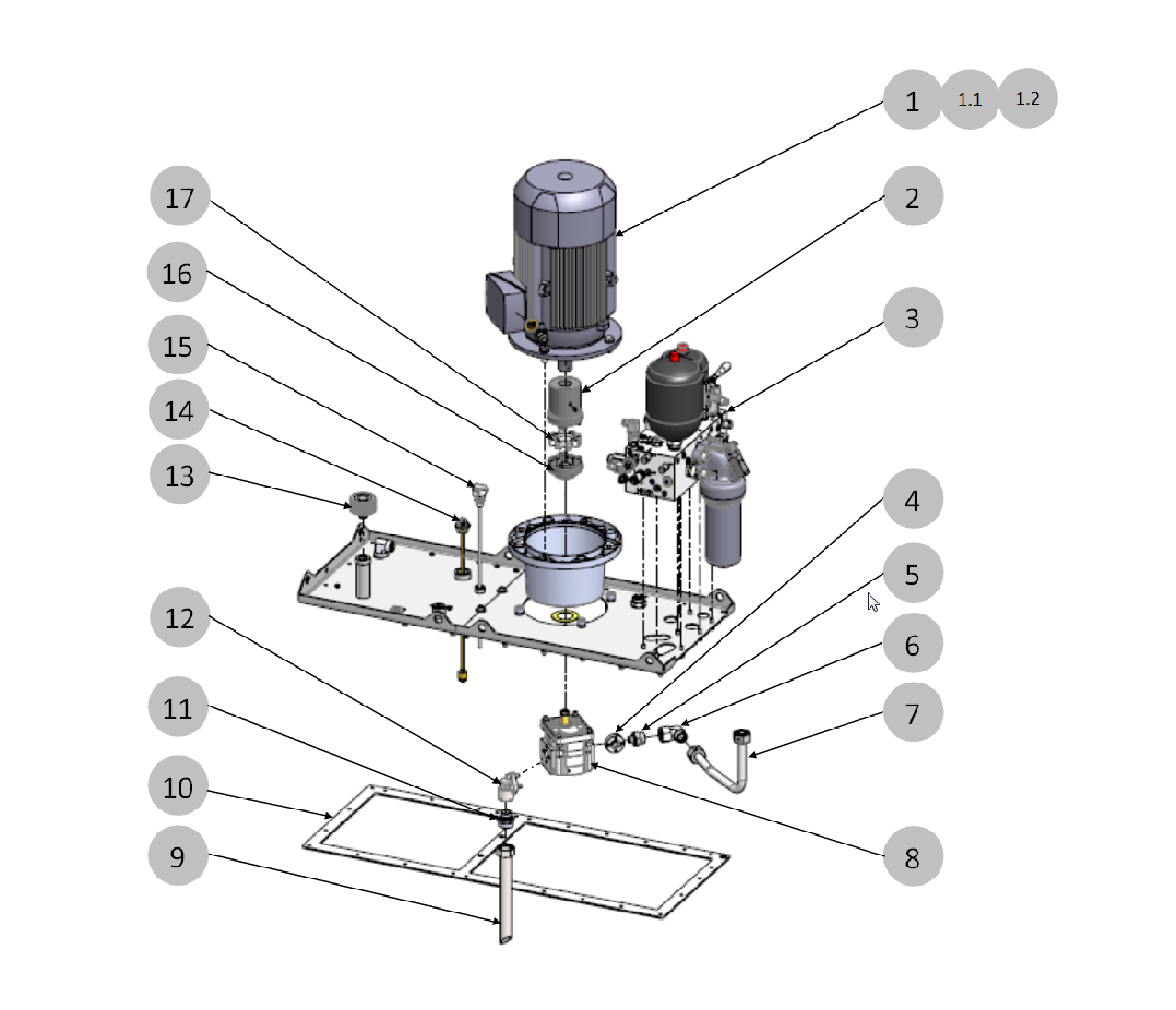

Tank
Applies for the following Item Numbers B4899, B5407
| Pos. | Description | Item no. |
| 1 | EI motor - Pos. 8 | 1007130 |
| 1.1 | Cable gland reduction | 662235 |
| 1.2 | Cable gland plastic | 662090 |
| 2 | Coupling motor - Pos. 5 | 201795 |
| 3 | Manifold for 2.0MW - Pos. 20 | B4897 |
| 3 | Manifold for 2.1MW - Pos. 20 | B5424 |
| 4 | Flange for gear pump | 1007361 |
| 5 | Male stud coupling | 8011S25 21 |
| 6 | Adjust Stud Standpipe Elbow | 8072S25 00 |
| 7 | AE Pressure pipe | AI01705 |
| 8 | Gear pump - 50 HZ - Pos. 2 | 1007344 |
| 8 | Gear pump - 60 HZ - Pos. 2 | 1009263 |
| 9 | AE Suction pipe | AI00589 |
| 10 | Tank seal | AI00554 |
| 11 | Male stud coupling | 8011L35 34 |
| 12 | Flange for gear pump | 179700 |
| 13 | Spin-on air filter - Pos. 10 | 1003141 |
| 14 | Level switch - Pos. 9.2 | 1007350 |
| 15 | Temp. sensor - Pos. 9.1 | 1006233 |
| 16 | Coupling pump - Pos. 6 | 201745 |
| 17 | Rubber spider - Pos. 6.1 | 201700 |
No obligation to buy. You'll receive a quote
)

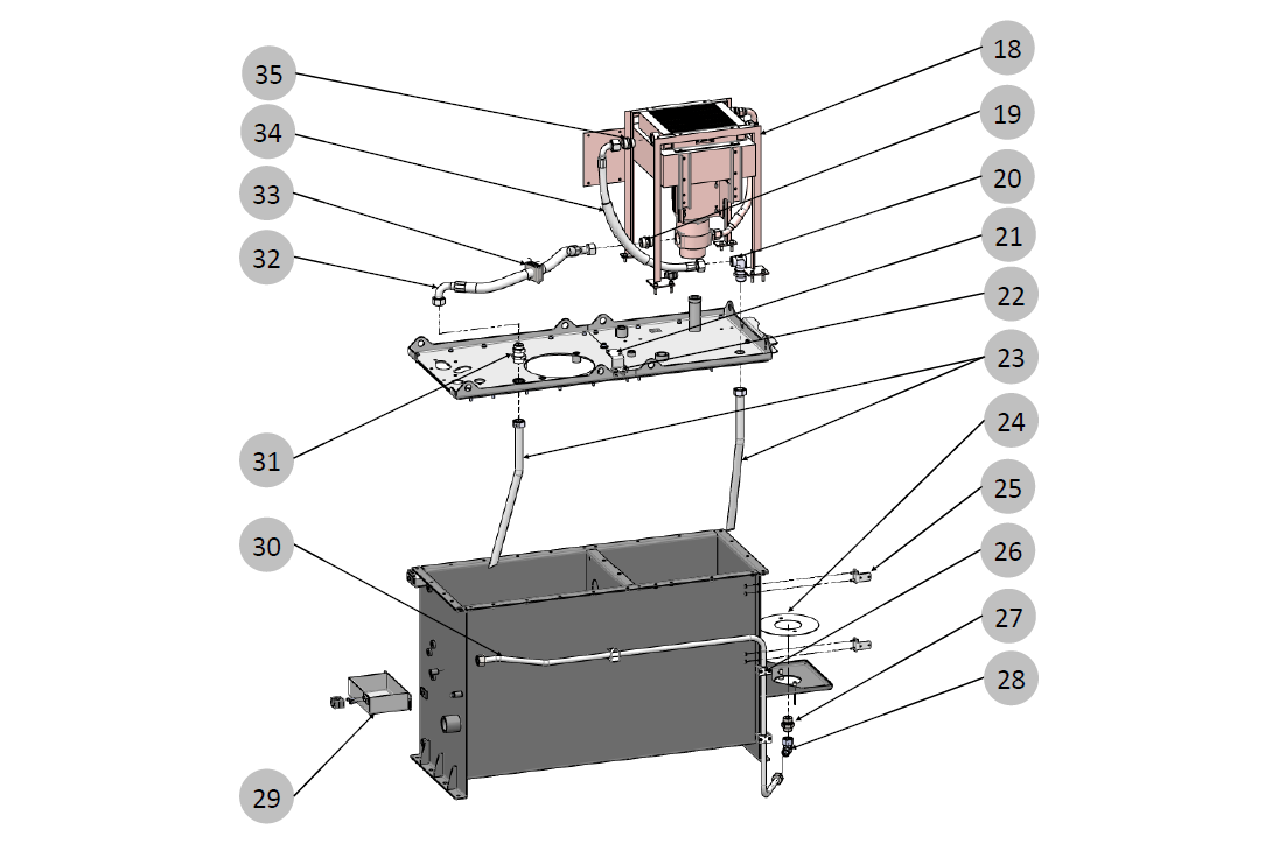

Tank
Applies for the following Item Numbers B4899, B5407
| Pos. | Description | Item no. |
| 18 | Oil cooler - Pos. 65 | 1008418 |
| 19 | Male stud coupling | 1008465 |
| 20 | Bulkhead elbow coupling | 8V12L28 00 |
| 21 | AE Bracket | AI00523 |
| 22 | AE Bracket | AI00524 |
| 23 | AE Suction pipe | AI00590 |
| 24 | AE Seal parts | AE01942 |
| 25 | AE Bracket | AI00522 |
| 26 | Pipe clamp | 1006315 |
| 27 | Male stud coupling | 8011S20 34 |
| 28 | Adjust Stud Standpipe Elbow | 8072S20 00 |
| 29 | AE Weld parts | AI00514 |
| 30 | AE Accumulator pipe | AI01704 |
| 31 | Bulkhead Straight coupling | 8V16L28 00 |
| 32 | AE Suction hose for 2.0MW | AI01432 |
| 32 | AE Suction hose for 2.1MW | AI01703 |
| 33 | Hose clamp set | 1002686 |
| 34 | AE Return hose | AI00531 |
| 35 | Male stud coupling | 8011L28 34 |
No obligation to buy. You'll receive a quote
)

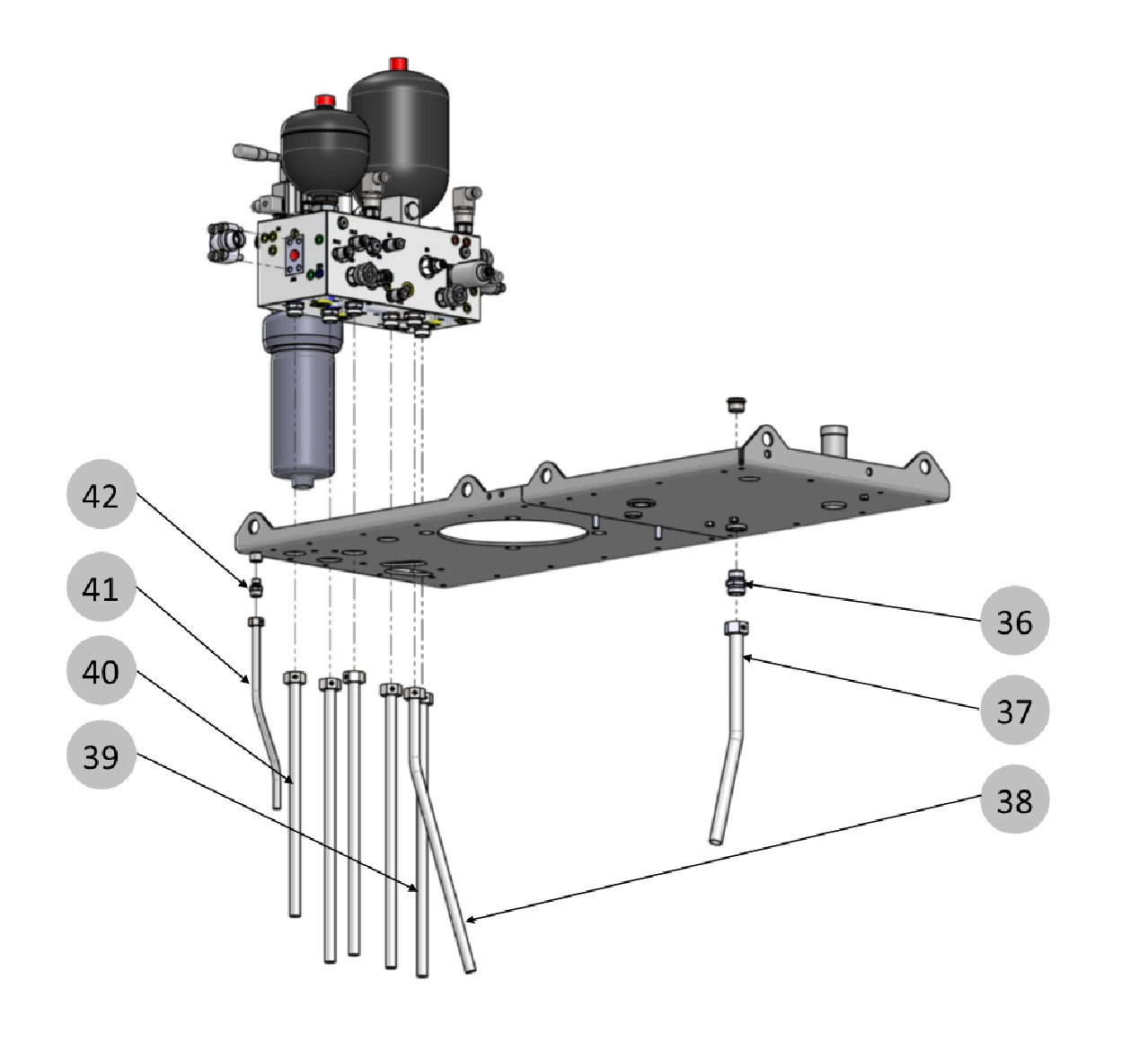

Tank
Applies for the following Item Numbers B4899, B5407
| Pos. | Description | Item no. |
| 36 | Male stud coupling, | 8011L22 27 |
| 37 | AE Pipe | AI00532 |
| 38 | AE Return pipe | AI01789 |
| 39 | AE Return pipe | AI00527 |
| 40 | AE Return pipe | AE01948 |
| 41 | AE Pipe | AE01947 |
| 42 | Male stud coupling | 8011L12 13 |
No obligation to buy. You'll receive a quote
)

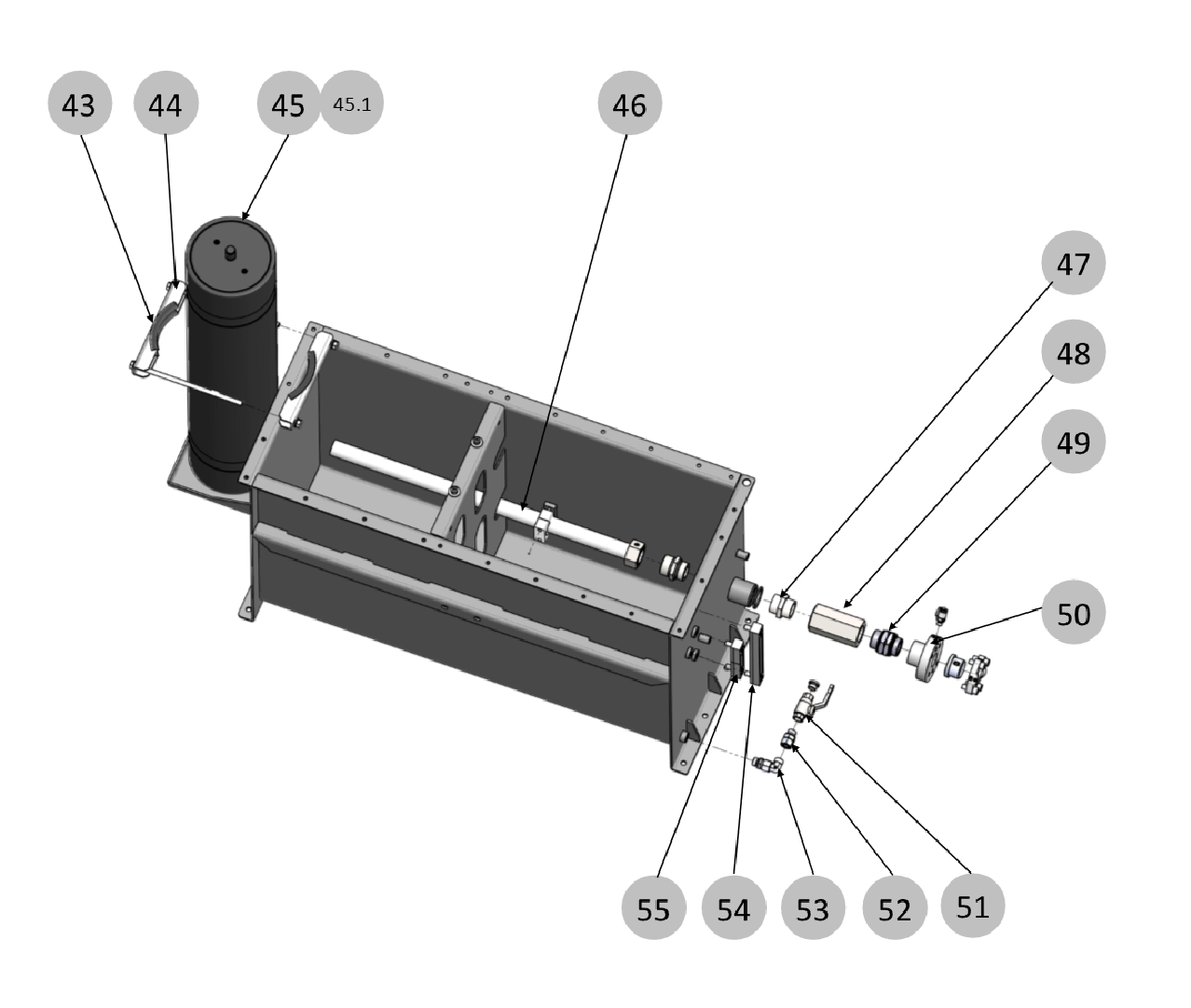

Tank
Applies for the following Item Numbers B4899, B5407
| Pos. | Description | Item no. |
| 43 | Edge list | 1006511 |
| 44 | AE Bracket | AI00525 |
| 45 | Piston Accu. 28L. P0=110 bar -NW/CW - Pos. 24 | 1007438 |
| 45.1 | Gas valve | 1008051 |
| 45.2 | Seal kit | 20008751 |
| 46 | AE Return pipe | AI00539 |
| 47 | Straight connector male | 1006404 |
| 48 | Check valve - Pos. 13 | 1006248 |
| 49 | Connector male | 1006420 |
| 50 | AE Flange | AE01901 |
| 51 | Ball valve - Pos. 11 | 9596333 |
| 52 | Male stud coupling | 8501L15 21 |
| 53 | Adjustable male stud elbow | 1006317 |
| 54 | Level gauge - Pos. 12.2 | 203940 |
| 55 | Level gauge - Pos. 12.1 | 1006939 |
No obligation to buy. You'll receive a quote
Questions? Please contact us ...
Europe
North America
Questions? Let us give you a call.
| Pos. | Description | Item no. |
| 1 | ORFS 90° male stud elbow adj . | 360715 |
| 2 | Pipe, pitch accu to manifold | AE00456 |
| 3 | ORFS 90° male stud elbow adj . | 360715 |
| 4 | Return pipe for brake | AE00465 |
| 5 | ORFS Male stud connector | 360662 |
| 6 | Pipe. brake accu to manifold | AE00457 |
| 7 | Edge list | 1001944 |
| 8 | ORFS Male stud connector | 360667 |
| 9 | AE Pressure Pipe | AE00453 |
| 10 | Level switch for B3735 | 1001408 |
| 10 | Level switch for B4353 | 1002698 |
| 10 | Level switch for B4500, B4547, B4548, B4549 | 186520 |
| 11 | Return pipe to filter | AE00466 |
| 12 | SWP 2,3MW Pitch pump manifold for B3735, B4500, B4548 | B4637S |
| 12 | SWP 2,3MW Pitch pump manifold for B4353, B4547, B4549 | B4638S |
