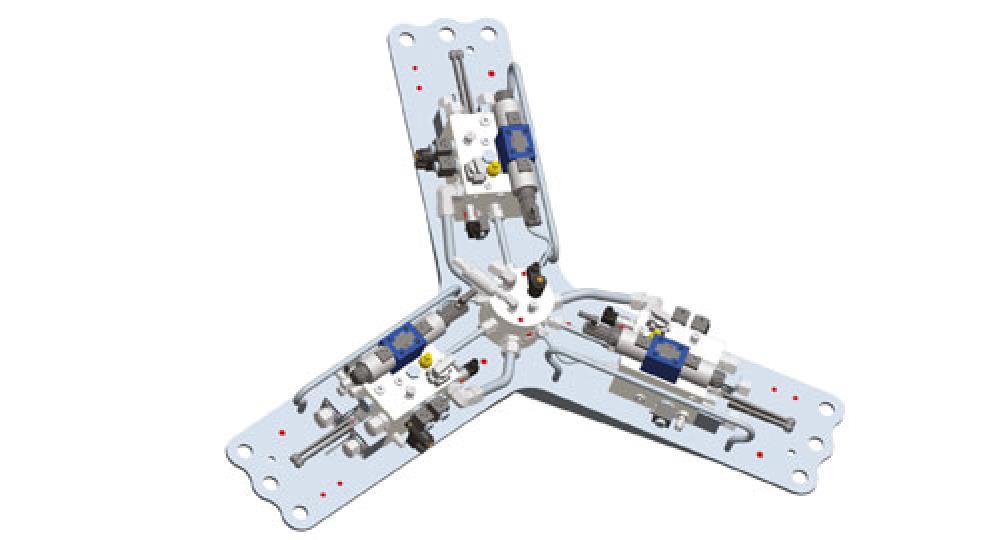

Pitch Assembly
Hub/
Pos. | Description | Item no. |
1 | Pitch manifold for B3253 | B3254S |
1 | Pitch manifold for B4349 | B4299S |
1 | Proportional Directional valve - Pos. 102 | 433010 |
1 | Blanking plug port, type E, G1/2 | 8022 21 00 |
1 | Test coupling | 358701 |
1 | ORFS Male stud connector | 360676 |
1 | Pitch manifold | B2985S |
2 | Return pipe for pitch manifold | AH3035 |
2 | Blanking plug port, type E, G1/2 | 8022 21 00 |
2 | ORFS Male stud connector | 360662 |
2 | Cartridge valve 3/2 – spool – Pos. 130 | 1001887 |
2 | Blanking plug port, type E, G1/4 | 8022 13 00 |
2 | Return pipe for pitch manifold | 557451 |
3 | Pressure pipe for pitch manifold | AH3033 |
3 | ORFS Male stud connector | 360662 |
3 | Blanking plug port, type E, G1/4 | 8022 13 00 |
3 | ORFS Male stud connector | 360676 |
3 | ORFS Male stud connector | 360667 |
3 | Pressure pipe for pitch manifold | 557450 |
4 | Pressure pipe for pitch pal | AH3034 |
4 | Check valve, cartridge - Pos. 110 | 104575 |
4 | Blanking plug port, type E, G1/8 | 8022 10 00 |
4 | ORFS Male stud connector | 360662 |
4 | Blanking plug port, type E, G1/4 | 8022 13 00 |
4 | Deviding manifold | B2984S |
4.1 | Orifice Sleeve for B3254 - Pos. 121 | 153050 |
4.1 | Orifice Sleeve for B4299 - Pos. 121 | 1001259 |
5 | Cabling guide | AH3036 |
5 | Ball valve, 2 way - Pos. 108 | 329304 |
5 | ORFS Male stud connector | 360667 |
5 | ORFS Male stud connector | 360667 |
5 | ORFS Male stud connector | 360662 |
5 | Base frame for pitch assembly | 557453 |
5.1 | Ball valve, 2 way - Pos. 128 | 329303 |
6 | Deviding manifold 3,6MW | B3261S |
6 | ORFS Male stud connector | 360676 |
6 | Pres.transmitter 0-400bar DIN - Pos. 107 | 634210 |
6 | ORFS Male stud connector | 360676 |
6 | ORFS Male stud connector | 360676 |
7 | Baseframe for B3253 | AH3039 |
7 | Baseframe for B4349 | AE01022 |
7 | Test coupling, w. seal | 358703 |
7 | Solenoid Cartridge valve - Pos. 116 | 1011939 |
7 | Male stud coupling JIC | 518512 |
7 | ORFS Male stud connector | 360667 |
7.1 | Test coupling, w. seal | 358701 |
8 | Cartridge valve 2/2NO poppet - Pos. 120 | 319420 |
8 | Blanking plug port, type E, G1/4 | 8022 13 00 |
8 | Pressure filter Inline | 503420 |
8 | Dividing manifold 3.6MW | B3261S |
9 | Solenoid Cartridge valve - Pos. 103 | 1011542 |
9 | Solenoid Cartridge valve for B3254 - Pos. 119 | 1011543 |
9 | Solenoid Cartridge valve for B4299 - Pos. 119 | 1009073 |
9 | Male Elbow coupling JIC | 518550 |
10 | Blanking plug port, type E, G1/2 | 8022 21 00 |
10 | Test coupling | 358709 |
10 | JIC 90 ° Male Elbow Adjust. | 519110 |
11 | Solenoid Cartridge valve - Pos. 109 | 1009073 |
11 | Blanking plug port, type E, G1/4 | 8022 13 00 |
11 | JIC 90 ° Male Elbow Adjust. | 519120 |
12 | Check valve, cartridge - Pos. 118 | 104579 |
12 | Pitch Manifold for 3.6MW | B3254S |
13 | ORFS 90 ° Male Elbow Adjust. | 360718 |
14 | Blanking plug port, type E, G1/4 | 358805 |
15 | Manual operated 2/2 way valve - Pos. 117 | 214265 |
16 | Relief valve cartridge - Pos. 101 | 104246 |
17 | Check valve, cartridge - Pos. 104 | 104577 |
18 | Blanking plug port, type E, G3/8 | 8022 17 00 |
